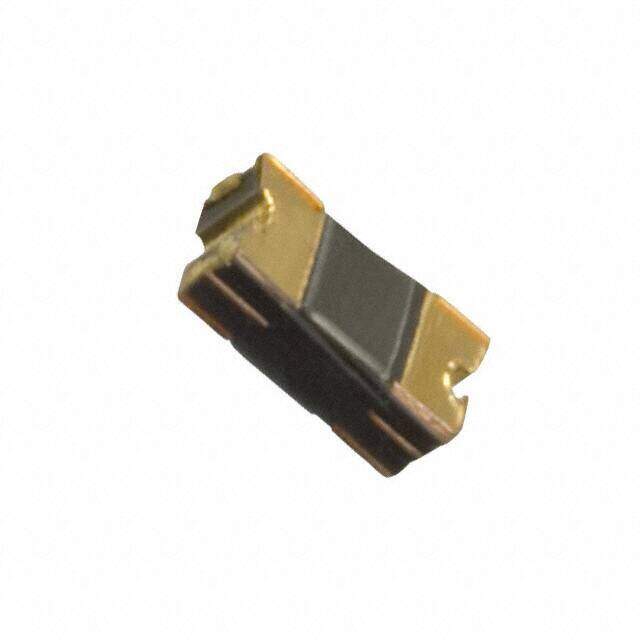

PC06F2.5A
RoHS
/
Package 0603 (1608 Metric)
Category Circuit Protection / Fuses
Description
Surface Mount Fuses
PDF
/
Inventory: 8887
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Surface Mount YES
Terminal Shape END CAP
Technical
Packaging Tape & Reel (TR)
Series PolyCHIP? PC06F
Size / Dimension 0.063Lx0.032W x 0.021 H 1.60mmx0.81mmx0.53mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
ECCN Code EAR99
Additional Feature RATED BREAKING CAPACITY AT 32 VDC: 50 A
HTS Code 8536.10.00.40
Current Rating (Amps) 2.5A
Reference Standard UL
Voltage - Rated AC 32V
Approval Agency UL
Body Length or Diameter 1.6mm
Body Breadth 0.81 mm
Physical Dimension 1.6mm x 0.81mm x 0.53mm
Response Time Fast Blow
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 50A
Rated Current 2.5A
Melting I2t 0.10139
DC Cold Resistance 0.021Ohm
Circuit Protection Type ELECTRIC FUSE
Rated Voltage(DC) 32V
Dimensions
Body Height 0.53mm
