C308F50MA-TR
RoHS
RoHS compliant
RoHS compliantPackage Cartridge, Non-Standard
Category Circuit Protection / Fuses
Description

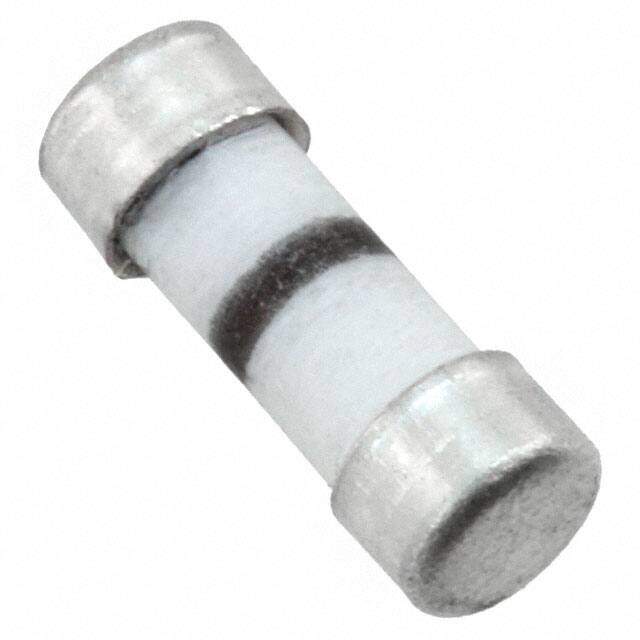

FUSE CERAMIC 50MA 250VAC/VDC
PDF
/
Buying Options
Total Price: USD $5.03
Unit Price: USD $5.0336
≥1 USD $5.0336
≥10 USD $4.85584
≥100 USD $4.6772
≥500 USD $3.59744
≥1000 USD $3.166856
Inventory: 1116
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 8.7mm
Technical
Fuse Type Cartridge, Ceramic
Response Time Fast Blow
Approval Agency cURus
Voltage - Rated AC 250V
Current Rating 50mA
Current Rating (Amps) 50mA
Voltage - Rated DC 250V
Voltage - Rated 250V
Color Red
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 0.120Diax0.343L 3.05mmx8.70mm
Series C308F
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Housing Material Ceramic
Number of Pins 2
Package / Case Cartridge, Non-Standard
Mounting Type Holder
Mount Holder
Contact Plating Silver
Supply Chain
Factory Lead Time 9 Weeks
