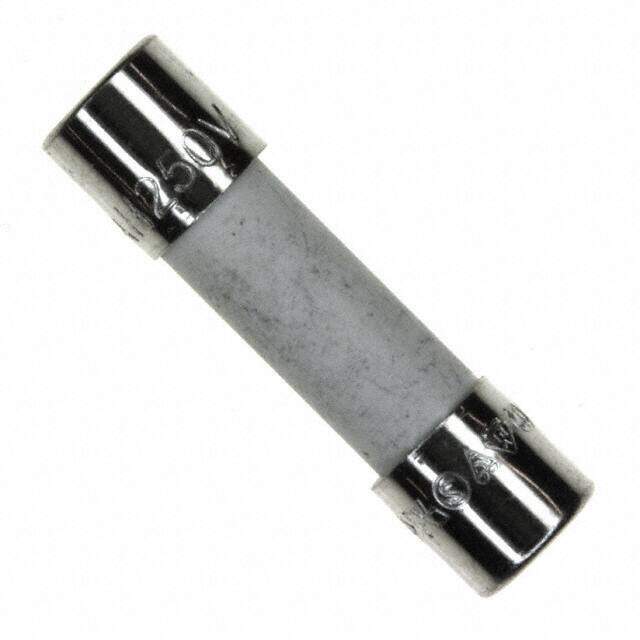

BK/S505-800MA image
Favorite
BK/S505-800MA image
Favorite
RoHS
/
Package 5mm x 20mm
Category Circuit Protection / Fuses
Description Cartridge Fuses 250V 0.8A Time Delay Ceramic
PDF
/
Inventory: 7066
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status Non-RoHS Compliant

Dimensions

Body Height 21.1mm

Technical

Blow Characteristic TIME DELAY
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.237Ohm
Rated Current 0.8A
Breaking Capacity @ Rated Voltage 1.5kA
Fuse Type Cartridge, Ceramic
Response Time Slow Blow
Physical Dimension 5.54mm x 21.1mm
Body Length or Diameter 5.54mm
Approval Agency BSI, CCC, CSA, IMQ, SEMKO, UR, VDE
Voltage - Rated AC 250V
Reference Standard BSI; IEC; IMQ; MITI; SEMKO; UL; VDE
Packing Method BOX
Current Rating (Amps) 800mA
HTS Code 8536.10.00.40
Terminal Finish TIN
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Size / Dimension 0.205Diax0.787L 5.20mmx20.00mm
Series S505
Published 2007
Packaging Bulk

Physical

Mounting Feature THROUGH HOLE
Terminal Shape PIN WIRE
Surface Mount NO
Package / Case 5mm x 20mm
Mounting Type Holder

Supply Chain

Factory Lead Time 8 Weeks
