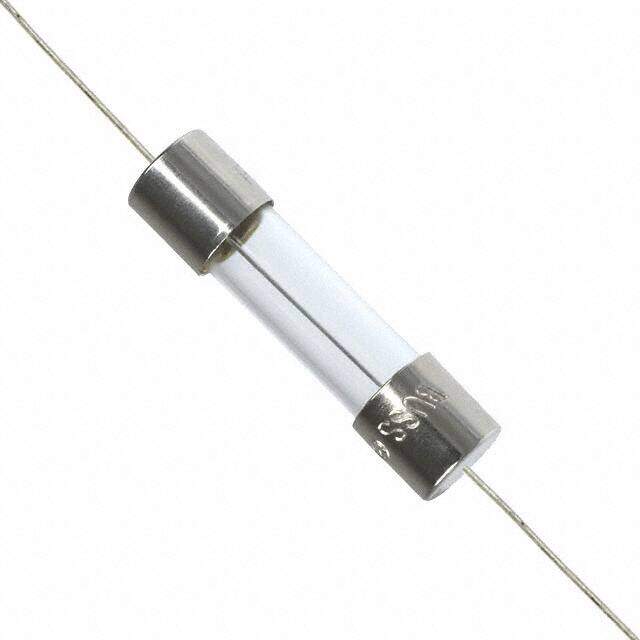

BK/S500-V-3.15R
RoHS
RoHS compliant
RoHS compliantPackage 5mm x 20mm (Axial)
Category Circuit Protection / Fuses
Description
FUSE 3.15A 250V FAST GLASS S500
PDF
/
Buying Options
Total Price: USD $4.93
Unit Price: USD $4.931721
≥1 USD $4.931721
≥10 USD $4.652565
≥100 USD $4.389217
≥500 USD $4.140769
≥1000 USD $3.906384
Inventory: 1121
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Through Hole
Package / Case 5mm x 20mm (Axial)
Technical
Packaging Bulk
Series S500
Size / Dimension 0.218Diax0.831L 5.54mmx21.10mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Voltage - Rated DC 250V
Current Rating (Amps) 3.15A
Voltage - Rated AC 250V
Approval Agency BSI, CCC, CSA, cULus, IMQ, SEMKO, VDE
Response Time Fast Blow
Fuse Type Cartridge, Glass
Breaking Capacity @ Rated Voltage 35A
Melting I2t 13
DC Cold Resistance 0.025Ohms
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
