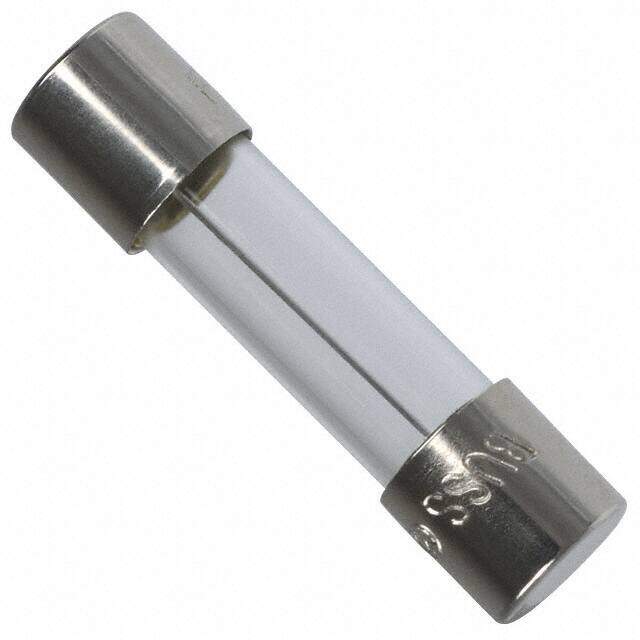

BK/S500-5A
RoHS
/
Package 5mm x 20mm
Category Circuit Protection / Fuses
Description
BUSSMAN BULK FUSE ;ROHS COMPLIANT: NO
PDF
/
Inventory: 4619
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Body Height 21.1mm
Technical
Joule Integral-Nom 42 J
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.015Ohm
Melting I2t 42
Rated Current 5A
Breaking Capacity @ Rated Voltage 35A
Fuse Type Cartridge, Glass
Response Time Fast Blow
Physical Dimension 5.54mm x 21.1mm
Body Length or Diameter 5.54mm
Approval Agency BSI, IMQ, SEMKO, UL, VDE
Voltage - Rated AC 250V
Reference Standard BSI; CSA; IMQ; SEMKO; UL; VDE
Packing Method BOX
Current Rating (Amps) 5A
HTS Code 8536.10.00.40
Terminal Finish TIN
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Size / Dimension 0.205Diax0.787L 5.20mmx20.00mm
Series S500
Published 2011
Packaging Bulk
Physical
Mounting Feature THROUGH HOLE
Terminal Shape PIN WIRE
Surface Mount NO
Package / Case 5mm x 20mm
Mounting Type Holder
Supply Chain
Factory Lead Time 8 Weeks
