BK/PCE-5-SD
RoHS
/
Package Radial, Box
Category Circuit Protection / Fuses
Description
Fuses with Leads (Through Hole) SUBMINIATURE FUSE
PDF
/
Inventory: 8714
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Width 4.6736mm
Length 8.89mm
Height 8.763mm
Technical
Breaking Capacity @ Rated Voltage 10kA AC 1kA DC
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Fast Blow
Max Voltage Rating (DC) 400V
Max Voltage Rating (AC) 125V
Approval Agency CSA, UL
Voltage - Rated AC 125V
Current Rating 5A
Current Rating (Amps) 5A
Voltage - Rated DC 450V
Voltage - Rated 125V
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.350Lx0.184W x 0.345 H 8.89mmx4.67mmx8.76mm
Series PC-Tron?
Published 2014
Packaging Bulk
Physical
Weight 907.18474mg
Number of Pins 2
Package / Case Radial, Box
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

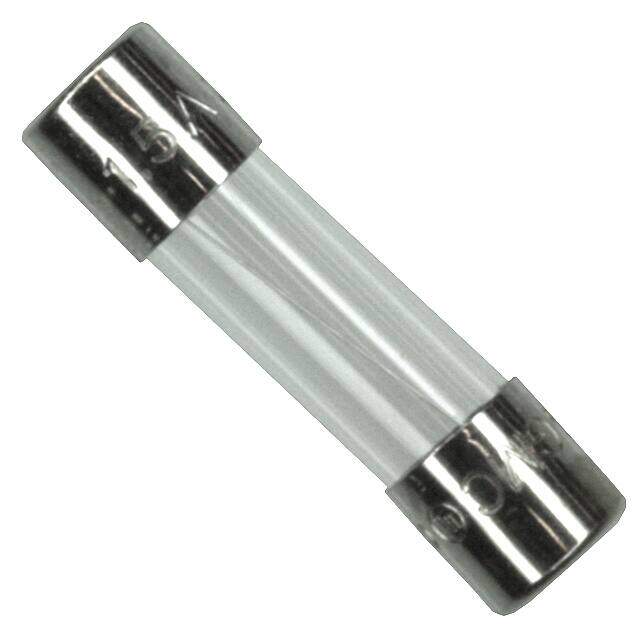

Alternative Model
