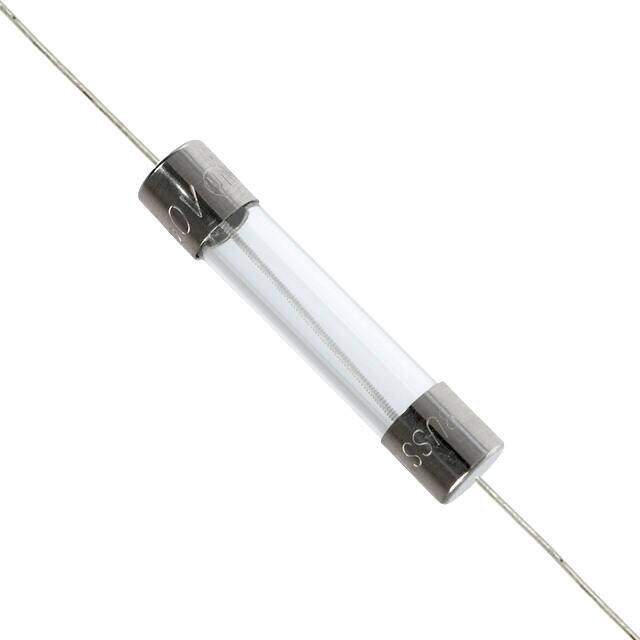

BK/MDL-V-3/16
RoHS
/
Package 3AB, 3AG, 1/4 x 1-1/4 (Axial)
Category Circuit Protection / Fuses
Description
Fuse Miniature 0.1875A 250V Slow Blow 2-Pin Axial Through Hole
PDF
/
Inventory: 5749
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Body Height 32.82mm
Technical
Blow Characteristic TIME LAG
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 4.68Ohm
Melting I2t 0.116
Rated Current 0.1875A
Breaking Capacity @ Rated Voltage 35A
Fuse Type Cartridge, Glass
Response Time Slow Blow
Physical Dimension 6.76mm x 32.82mm
Body Length or Diameter 6.76mm
Approval Agency CSA, UL
Voltage - Rated AC 250V
Current Rating (Amps) 187mA
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
Size / Dimension 0.266Diax1.292L 6.76mmx32.82mm
Series MDL
Published 2007
Packaging Bulk
Physical
Terminal Shape PIN WIRE
Package / Case 3AB, 3AG, 1/4 x 1-1/4 (Axial)
Mounting Type Through Hole
Supply Chain
Factory Lead Time 8 Weeks
