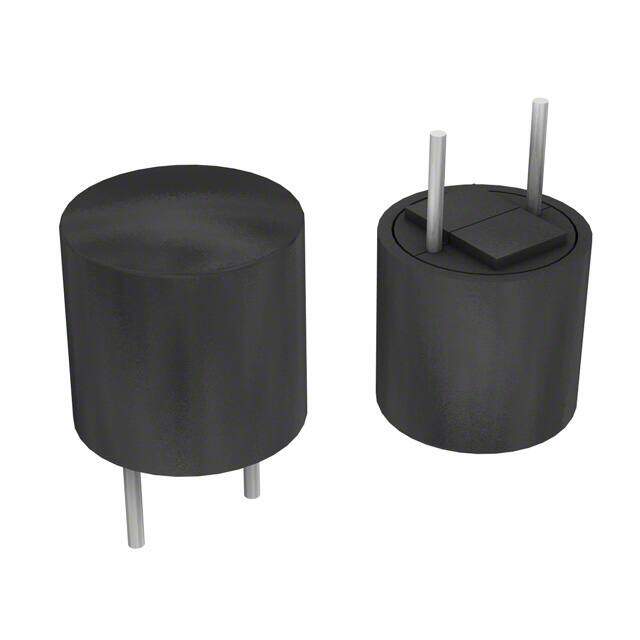

BK/EFF-315MA
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can, Vertical
Category Circuit Protection / Fuses
Description
Fuse Micro 0.315A 250V Fast 2-Pin Radial Through Hole
PDF
/
Inventory: 1679
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Body Height 8.2mm
Technical
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.34Ohm
Melting I2t 0.05
Rated Current 0.315A
Breaking Capacity @ Rated Voltage 50A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Fast Blow
Physical Dimension 8.35mm x 8.2mm
Body Length or Diameter 8.35mm
Approval Agency SEMKO, UL
Voltage - Rated AC 250V
Reference Standard CSA; SEMKO; UL; VDE
Current Rating (Amps) 315mA
HTS Code 8536.10.00.40
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.329Dia x 0.303 H 8.35mmx7.70mm
Series EFF
Published 2004
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Terminal Shape PIN WIRE
Surface Mount NO
Package / Case Radial, Can, Vertical
Mounting Type Through Hole
Supply Chain
Factory Lead Time 8 Weeks
