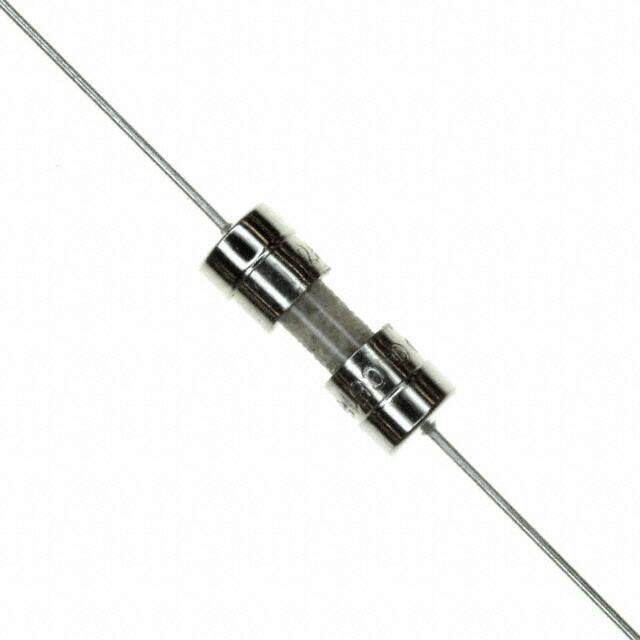

BK/C518S-750-R image
Favorite
BK/C518S-750-R image
Favorite
RoHS
RoHS RoHS compliant
Package 2AG, 5mm x 15mm (Axial)
Category Circuit Protection / Fuses
Description FUSE 750MA 250VAC AXIAL FAST
PDF
/
Inventory: 8369
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Length 15.1892mm

Technical

DC Cold Resistance 0.91Ohms
Melting I2t 0.264
Breaking Capacity @ Rated Voltage 35A
Fuse Type Cartridge, Glass
Response Time Fast Blow
Max Voltage Rating (AC) 250V
Approval Agency CSA, UL
Voltage - Rated AC 250V
Current Rating 750mA
Current Rating (Amps) 750mA
Voltage - Rated 250V
Resistance 910mOhm
Termination Axial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.217Diax0.598L 5.50mmx15.20mm
Series C518
Published 2009
Packaging Bulk

Physical

Weight 453.59237mg
Number of Pins 2
Package / Case 2AG, 5mm x 15mm (Axial)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Tin

Supply Chain

Factory Lead Time 13 Weeks
