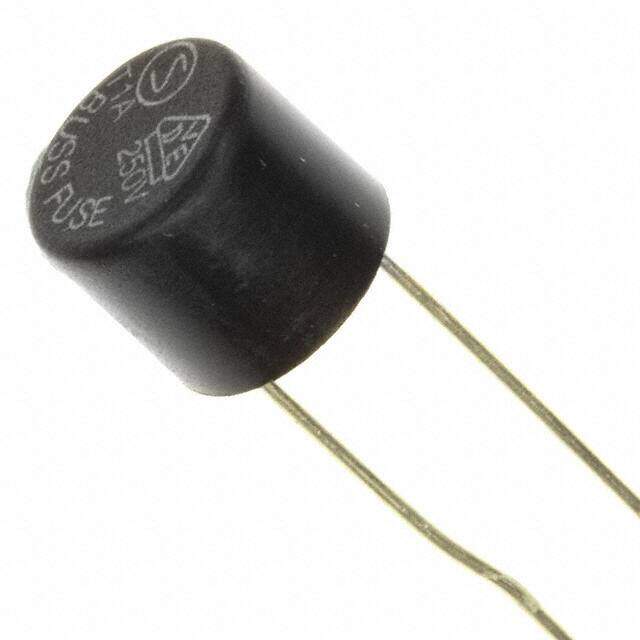

AP/ETF-1.6
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can, Vertical
Category Circuit Protection / Fuses
Description
FUSE BOARD MOUNT 1.6A 277VAC RAD
PDF
/
Inventory: 4987
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Body Height 8.2mm
Technical
Joule Integral-Nom 15 J
Blow Characteristic TIME LAG
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.047Ohm
Melting I2t 15
Rated Current 1.6A
Breaking Capacity @ Rated Voltage 100A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Slow Blow
Physical Dimension 8.35mm x 8.2mm
Body Length or Diameter 8.35mm
Approval Agency SEMKO, UL
Voltage - Rated AC 277V
Reference Standard CSA; SEMKO; UL; VDE
Reach Compliance Code unknown
Packing Method AMMO PACK
Current Rating (Amps) 1.6A
HTS Code 8536.10.00.40
Terminal Finish Tin (Sn)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Size / Dimension 0.329Dia x 0.303 H 8.35mmx7.70mm
Series ETF
Packaging Tape & Box (TB)
Operating Temperature -55°C~125°C
Physical
Terminal Shape PIN WIRE
Surface Mount NO
Package / Case Radial, Can, Vertical
Mounting Type Through Hole
