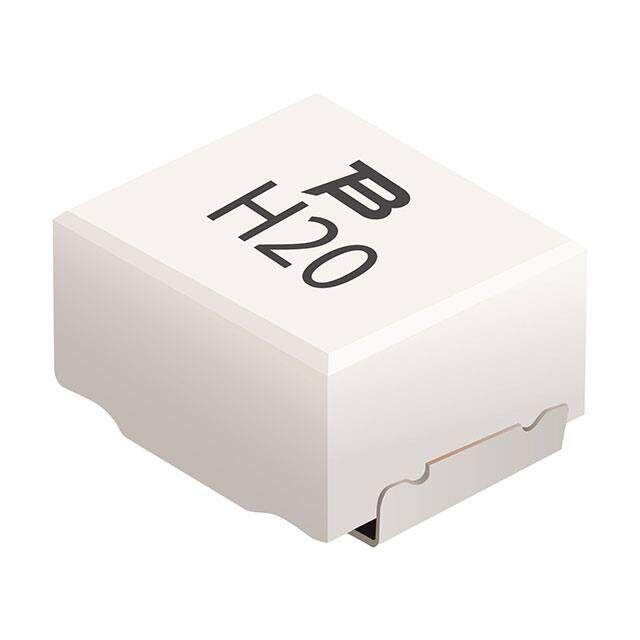

SF-2923HC30C-2
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, J-Lead
Category Circuit Protection / Fuses
Description
FUSE BOARD MOUNT 30A 60VDC 2SMD
PDF
/
Buying Options
Total Price: USD $3.02
Unit Price: USD $3.0184
≥1 USD $3.0184
≥10 USD $2.91632
≥100 USD $2.81248
≥500 USD $2.187152
≥1000 USD $1.833656
Inventory: 1194
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Body Height 4mm
Technical
Joule Integral-Nom 270 J
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.0012Ohm
Melting I2t 207
Rated Current 30A
Breaking Capacity @ Rated Voltage 300A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Fast Blow
Physical Dimension 7.3mm x 5.8mm x 4mm
Body Breadth 5.8 mm
Body Length or Diameter 7.3mm
Approval Agency UL
Reference Standard UL
Base Part Number SF-2923
Packing Method TR, 13 INCH
Current Rating (Amps) 30A
Voltage - Rated DC 60V
Additional Feature PRE ARCING TIME: OPEN WITHIN 60 SEC AT 250% RATED CURRENT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.287Lx0.228W x 0.157 H 7.30mmx5.80mmx4.00mm
Series SinglFuse? SF-2923HC-C
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Terminal Shape J BEND
Surface Mount YES
Package / Case 2-SMD, J-Lead
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
