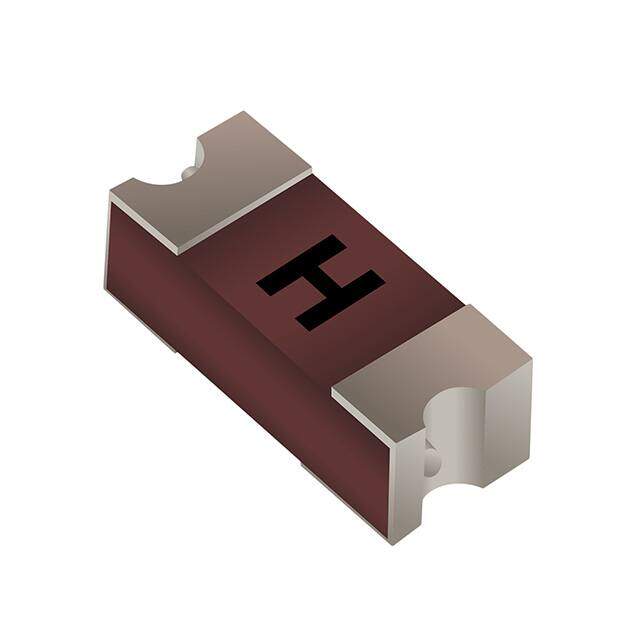

SF-2410SP063W-2
RoHS
RoHS compliant
RoHS compliantPackage 2410 (6125 Metric)
Category Circuit Protection / Fuses
Description
2410 SMD TIME-LAG WIRE-IN-AIR 0.
PDF
/
Buying Options
Total Price: USD $0.97
Unit Price: USD $0.968
≥1 USD $0.968
≥10 USD $0.93632
≥100 USD $0.87648
≥500 USD $0.725296
≥1000 USD $0.604384
≥3000 USD $0.589283
Inventory: 1161
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
DC Cold Resistance 0.148Ohm
Melting I2t 0.2
Breaking Capacity @ Rated Voltage 100A AC 50A DC
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Slow Blow
Approval Agency UL
Voltage - Rated AC 250V
Base Part Number SF-2410
Current Rating (Amps) 630mA
Voltage - Rated DC 125V
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.240Lx0.098W x 0.085 H 6.10mmx2.49mmx2.16mm
Series SinglFuse? SF-2410SPxxxW
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Package / Case 2410 (6125 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
