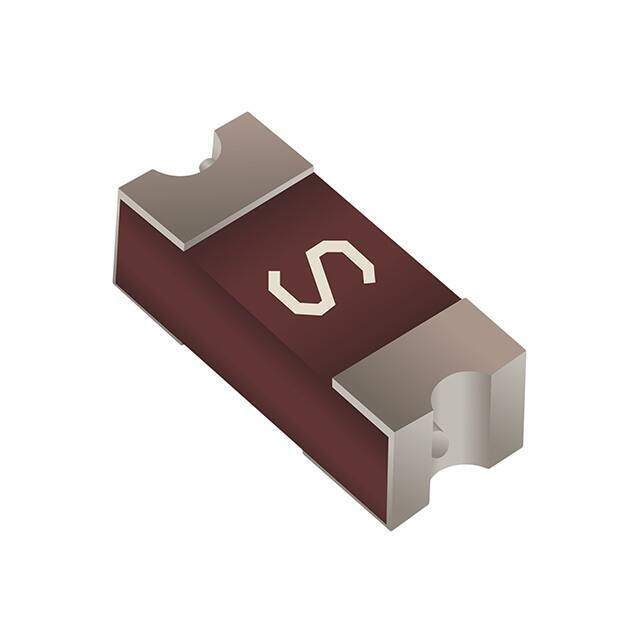

SF-2410FP200W-2
RoHS
RoHS compliant
RoHS compliantPackage 2410 (6125 Metric)
Category Circuit Protection / Fuses
Description
2410 SMD FAST-ACTING PRECISION W
PDF
/
Buying Options
Total Price: USD $0.71
Unit Price: USD $0.7128
≥1 USD $0.7128
≥10 USD $0.69168
≥100 USD $0.67144
≥500 USD $0.564432
≥1000 USD $0.4686
≥3000 USD $0.426026
Inventory: 1283
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case 2410 (6125 Metric)
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series SinglFuse? SF-2410FPxxxW
Size / Dimension 0.240Lx0.098W x 0.085 H 6.10mmx2.49mmx2.16mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Voltage - Rated DC 125V
Current Rating (Amps) 2A
Base Part Number SF-2410
Voltage - Rated AC 250V
Approval Agency UL
Response Time Fast Blow
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 100A AC 50A DC
Melting I2t 2.75
DC Cold Resistance 0.042Ohm
Compliance
RoHS Status ROHS3 Compliant
