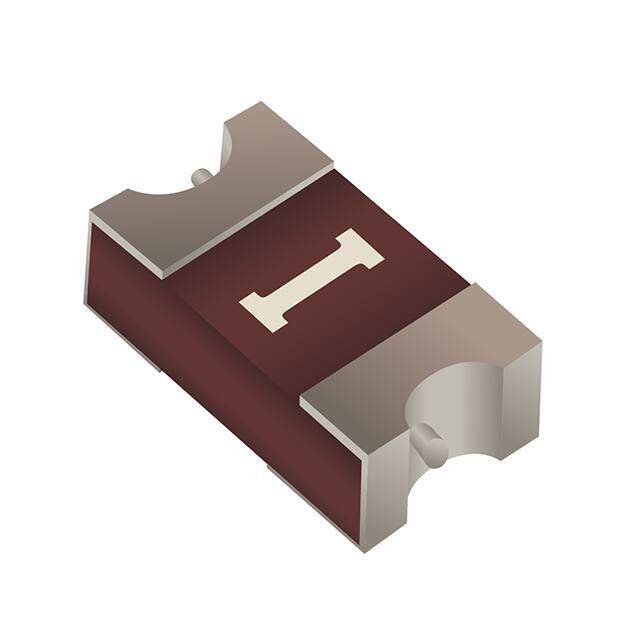

SF-1206S630W-2
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric), Concave
Category Circuit Protection / Fuses
Description
1206 SMD SLOW-BLOW WIRE-IN-AIR 6
PDF
/
Buying Options
Total Price: USD $0.88
Unit Price: USD $0.876967
≥1 USD $0.876967
≥10 USD $0.827328
≥100 USD $0.780501
≥500 USD $0.736318
≥1000 USD $0.694643
Inventory: 1133
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric), Concave
Surface Mount YES
Terminal Shape WRAPAROUND
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series SinglFuse? SF-1206SxxxW
Size / Dimension 0.126Lx0.063W x 0.043 H 3.20mmx1.60mmx1.10mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Additional Feature PRE ARCING TIME: OPEN WITHIN 5 SEC AT 250% RATED CURRENT
Voltage - Rated DC 32V
Current Rating (Amps) 6.3A
Packing Method TR, 7 INCH
Base Part Number SF-1206
Reference Standard UL
Approval Agency UL
Body Length or Diameter 3.2mm
Body Breadth 1.6 mm
Physical Dimension 3.2mm x 1.6mm x 1.08mm
Response Time Slow Blow
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 50A
Rated Current 6.3A
Melting I2t 8.9
DC Cold Resistance 0.01Ohm
Circuit Protection Type ELECTRIC FUSE
Joule Integral-Nom 8 J
Dimensions
Body Height 1.08mm
Compliance
RoHS Status ROHS3 Compliant
