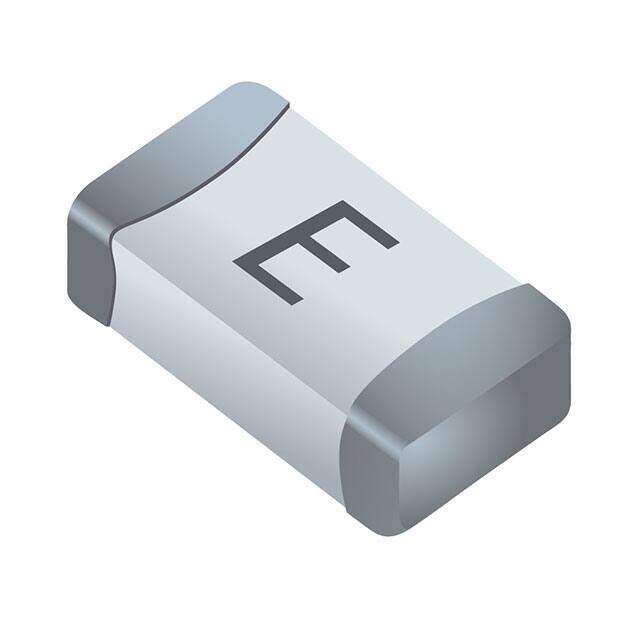

SF-1206HI300M-2
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Circuit Protection / Fuses
Description
1206 SMD HIGH-INRUSH MULTILAYER
PDF
/
Buying Options
Total Price: USD $0.79
Unit Price: USD $0.792
≥1 USD $0.792
≥10 USD $0.77088
≥100 USD $0.7216
≥500 USD $0.597344
≥1000 USD $0.497728
≥3000 USD $0.485267
Inventory: 4113
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Technical
Operating Temperature -55°C~150°C
Packaging Tape & Reel (TR)
Series SinglFuse? SF-1206HIxxxM
Size / Dimension 0.126Lx0.063W x 0.038 H 3.20mmx1.60mmx0.97mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Additional Feature PRE ARCING TIME: OPEN WITHIN 60 SEC AT 200% RATED CURRENT
Voltage - Rated DC 32V
Current Rating (Amps) 3A
Packing Method TR, 7 INCH
Base Part Number SF-1206
Approval Agency UL
Body Length or Diameter 3.2mm
Body Breadth 1.6 mm
Physical Dimension 3.2mm x 1.6mm x 0.97mm
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 50A
Rated Current 3A
Melting I2t 1.35
DC Cold Resistance 0.035Ohm
Circuit Protection Type ELECTRIC FUSE
Joule Integral-Nom 1 J
Dimensions
Body Height 0.97mm
Compliance
RoHS Status ROHS3 Compliant
