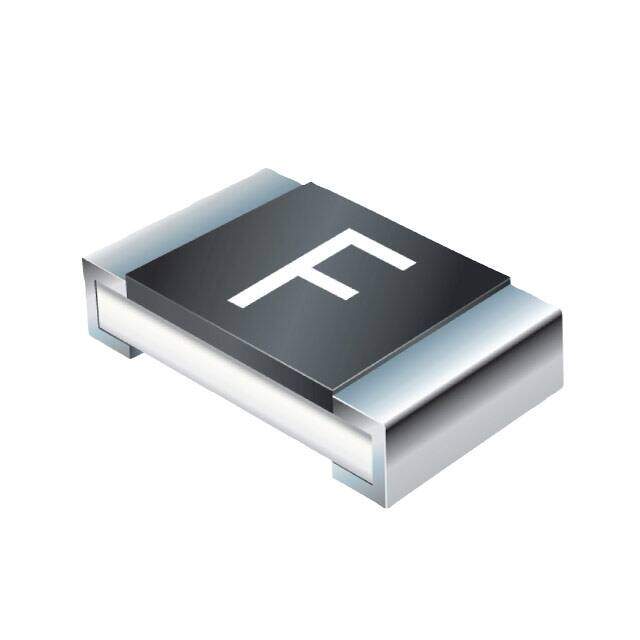

SF-1206FP200-2
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Circuit Protection / Fuses
Description
FUSE BOARD MNT 2A 63VDC 1206
PDF
/
Buying Options
Total Price: USD $0.5
Unit Price: USD $0.5016
≥1 USD $0.5016
≥10 USD $0.484
≥100 USD $0.4532
≥500 USD $0.37488
≥1000 USD $0.3124
≥3000 USD $0.304586
Inventory: 1089
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Technical
Operating Temperature -20°C~105°C
Packaging Tape & Reel (TR)
Series SinglFuse? SF-1206FP
Size / Dimension 0.122Lx0.061W x 0.024 H 3.10mmx1.55mmx0.60mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Additional Feature PRE ARCING TIME: OPEN WITHIN 5 SEC AT 200% RATED CURRENT; SINGLFUSE
HTS Code 8536.10.00.40
Current Rating (Amps) 2A
Packing Method TR, PAPER, 7 INCH
Base Part Number SF-1206
Reference Standard UL
Voltage - Rated AC 63V
Approval Agency UL
Body Length or Diameter 3.1mm
Body Breadth 1.55 mm
Physical Dimension 3.1mm x 1.55mm x 0.6mm
Response Time Fast Blow
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 50A
Rated Current 2A
Melting I2t 0.285
Circuit Protection Type ELECTRIC FUSE
Dimensions
Body Height 0.6mm
Compliance
RoHS Status ROHS3 Compliant
