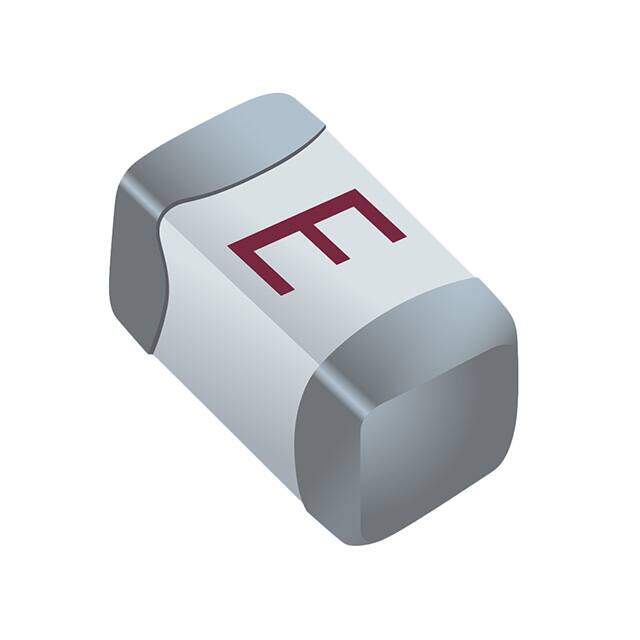

SF-0603SP700M-2 image
Favorite
SF-0603SP700M-2 image
Favorite

SF-0603SP700M-2

Bourns Inc.
RoHS
RoHS RoHS compliant
Package 0603 (1608 Metric)
Category Circuit Protection / Fuses
Description 0603 SMD TIME-LAG MULTILAYER 7.0
PDF
/
Buying Options
Total Price: USD $0.58
Unit Price: USD $0.5808
≥1 USD $0.5808
≥10 USD $0.56144
≥100 USD $0.52624
≥500 USD $0.435424
≥1000 USD $0.362824
≥3000 USD $0.353725
Inventory: 1165
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND

Technical

Operating Temperature -55°C~150°C
Packaging Tape & Reel (TR)
Series SinglFuse? SF-0603SPxxxM
Size / Dimension 0.063Lx0.031W 1.60mmx0.80mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Additional Feature SINGLFUSE, PRE ARCING TIME: OPEN WITHIN 1 TO 120 SEC AT 200% RATED CURRENT
Voltage - Rated DC 32V
Current Rating (Amps) 7A
Packing Method TR, PAPER, 7 INCH
Base Part Number SF-0603
Reference Standard UL
Body Length or Diameter 1.6mm
Body Breadth 0.8 mm
Physical Dimension 1.6mm x 0.8mm x 0.8mm
Response Time Slow Blow
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 80A
Rated Current 7A
Melting I2t 5
DC Cold Resistance 0.008Ohm
Circuit Protection Type ELECTRIC FUSE
Blow Characteristic TIME LAG
Joule Integral-Nom 5 J

Dimensions

Body Height 0.8mm

Compliance

RoHS Status ROHS3 Compliant
