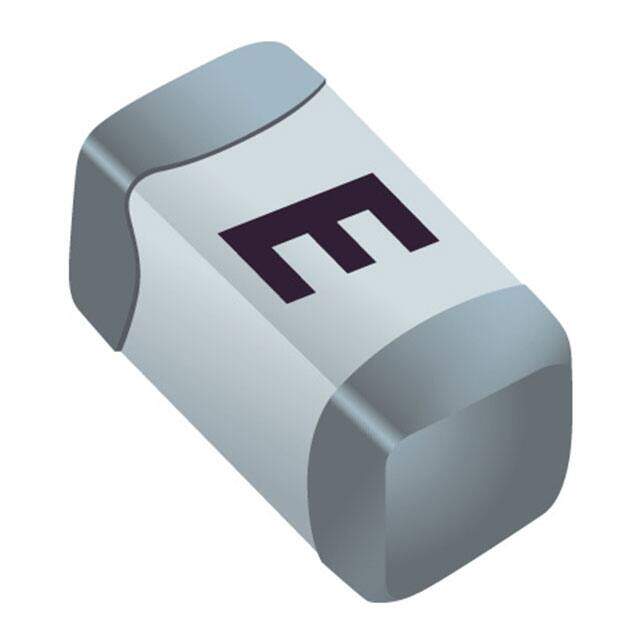

SF-0603S075M-2
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Circuit Protection / Fuses
Description
0603 SMD SLOW-BLOW MULTILAYER 0.
PDF
/
Buying Options
Total Price: USD $0.56
Unit Price: USD $0.5632
≥1 USD $0.5632
≥10 USD $0.54208
≥100 USD $0.50776
≥500 USD $0.419936
≥1000 USD $0.349888
≥3000 USD $0.341158
Inventory: 19873
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Body Height 0.8mm
Technical
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.254Ohm
Melting I2t 0.006
Rated Current 0.75A
Breaking Capacity @ Rated Voltage 35A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Slow Blow
Physical Dimension 1.6mm x 0.8mm x 0.8mm
Body Breadth 0.8 mm
Body Length or Diameter 1.6mm
Voltage - Rated AC 63V
Reference Standard UL
Base Part Number SF-0603
Packing Method TR, PAPER, 7 INCH
Current Rating (Amps) 750mA
Additional Feature SINGLFUSE, PRE ARCING TIME: OPEN WITHIN 5 SEC AT 250% RATED CURRENT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.063Lx0.031W x 0.037 H 1.60mmx0.80mmx0.95mm
Series SinglFuseō?ó SF-0603SxxxM
Packaging Tape & Reel (TR)
Operating Temperature -55┬?C~125┬?C
Physical
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
