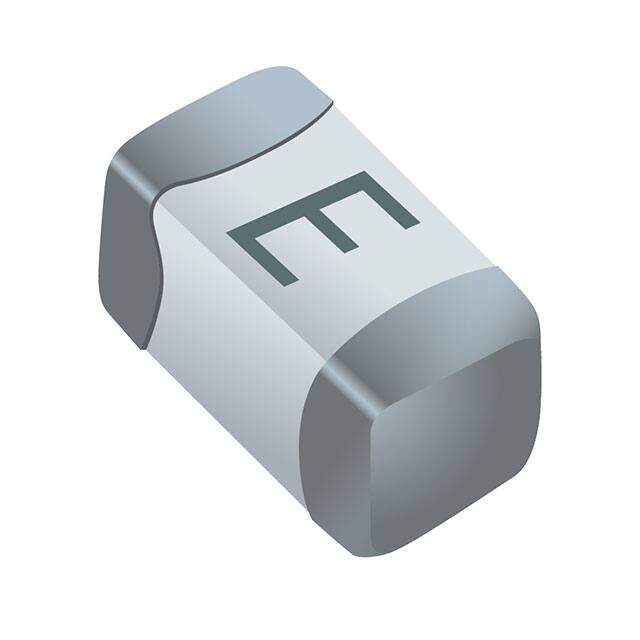

SF-0603HI350M-2
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Circuit Protection / Fuses
Description
0603 SMD HIGH-INRUSH MULTILAYER
PDF
/
Buying Options
Total Price: USD $0.83
Unit Price: USD $0.8272
≥1 USD $0.8272
≥10 USD $0.79904
≥100 USD $0.74712
≥500 USD $0.61864
≥1000 USD $0.515504
≥3000 USD $0.502621
Inventory: 55
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Technical
Operating Temperature -55°C~150°C
Packaging Tape & Reel (TR)
Published 2018
Series SinglFuse? SF-0603HIxxxM
Size / Dimension 0.063Lx0.031W x 0.031 H 1.60mmx0.80mmx0.80mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Additional Feature PRE ARCING TIME: OPEN WITHIN 60 SEC AT 200% RATED CURRENT
Voltage - Rated DC 32V
Current Rating (Amps) 3.5A
Packing Method TR, 7 INCH
Base Part Number SF-0603
Reference Standard UL
Approval Agency UL
Body Length or Diameter 1.6mm
Body Breadth 0.8 mm
Physical Dimension 1.6mm x 0.8mm x 0.8mm
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 50A
Rated Current 3.5A
Melting I2t 1.1
DC Cold Resistance 0.022Ohm
Circuit Protection Type ELECTRIC FUSE
Joule Integral-Nom 1 J
Dimensions
Body Height 0.8mm
Compliance
RoHS Status ROHS3 Compliant
