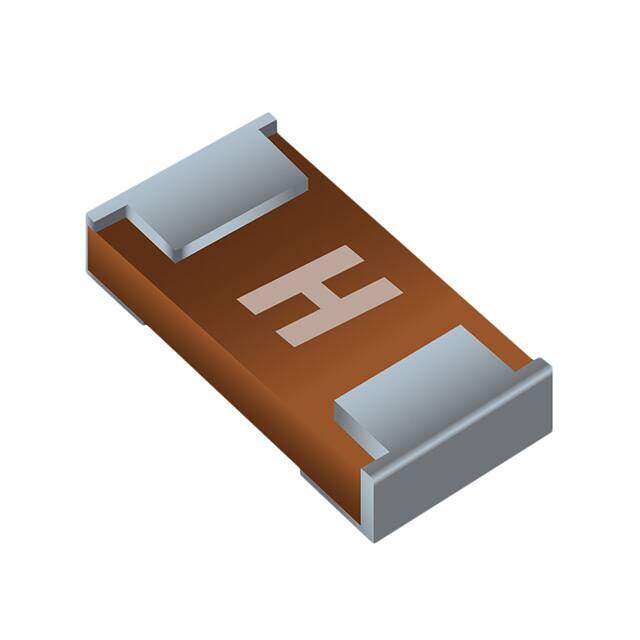

SF-0603FP350F-2
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Circuit Protection / Fuses
Description
0603 SMD FAST-ACTING PRECISION T
PDF
/
Buying Options
Total Price: USD $0.77
Unit Price: USD $0.7656
≥1 USD $0.7656
≥10 USD $0.74448
≥100 USD $0.69608
≥500 USD $0.575872
≥1000 USD $0.479952
≥3000 USD $0.467949
Inventory: 35
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Body Height 0.3mm
Technical
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.0148Ohm
Melting I2t 0.49
Rated Current 3.5A
Breaking Capacity @ Rated Voltage 50A AC 35A DC
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Fast Blow
Physical Dimension 1.6mm x 0.81mm x 0.3mm
Body Breadth 0.81 mm
Body Length or Diameter 1.6mm
Approval Agency UL
Voltage - Rated AC 24V
Reference Standard UL
Base Part Number SF-0603
Packing Method TR, 7 INCH
Current Rating (Amps) 3.5A
Voltage - Rated DC 35V
Additional Feature PRE ARCING TIME: OPEN WITHIN 5 SEC AT 200% RATED CURRENT
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Size / Dimension 0.063Lx0.032W x 0.012 H 1.60mmx0.81mmx0.30mm
Series SinglFuse? SF-0603FPxxxF
Packaging Tape & Reel (TR)
Operating Temperature -55°C~90°C
Physical
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
