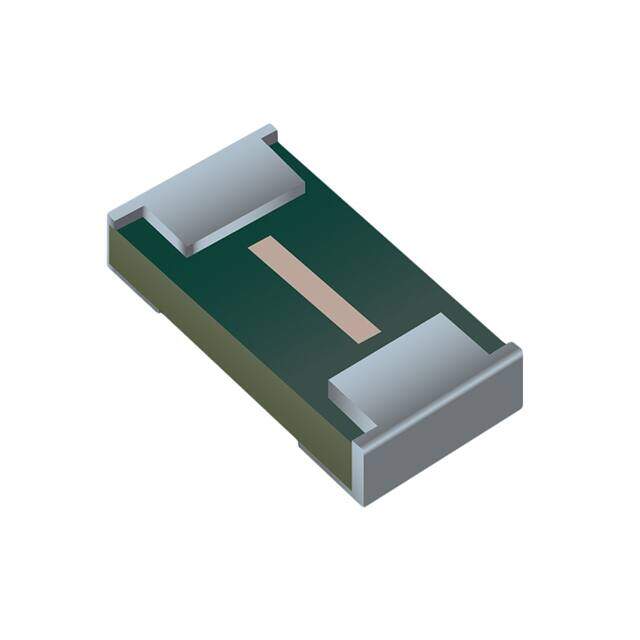

SF-0402FP300F-2
RoHS
RoHS compliant
RoHS compliantPackage 0402 (1005 Metric)
Category Circuit Protection / Fuses
Description
BOURNS - SF-0402FP300F-2 - Sicherung zur Oberfl?chenmontage, 3 A, SinglFuse SF-0402FPxxxF Series, 35 V, Flink, 0402
PDF
/
Buying Options
Total Price: USD $0.56
Unit Price: USD $0.5632
≥1 USD $0.5632
≥10 USD $0.54208
≥100 USD $0.50776
≥500 USD $0.419936
≥1000 USD $0.349888
≥3000 USD $0.341158
Inventory: 1093
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Body Height 0.33mm
Technical
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.015Ohm
Melting I2t 0.27
Rated Current 3A
Breaking Capacity @ Rated Voltage 35A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Fast Blow
Physical Dimension 1mm x 0.51mm x 0.33mm
Body Breadth 0.51 mm
Body Length or Diameter 1mm
Approval Agency UL
Reference Standard UL
Base Part Number SF-0402
Packing Method TR, 7 INCH
Current Rating (Amps) 3A
Voltage - Rated DC 35V
Additional Feature PRE ARCING TIME: OPEN WITHIN 5 SEC AT 200% RATED CURRENT
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Size / Dimension 0.039Lx0.020W x 0.013 H 1.00mmx0.51mmx0.33mm
Series SinglFuse? SF-0402FPxxxF
Packaging Tape & Reel (TR)
Operating Temperature -55°C~90°C
Physical
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
