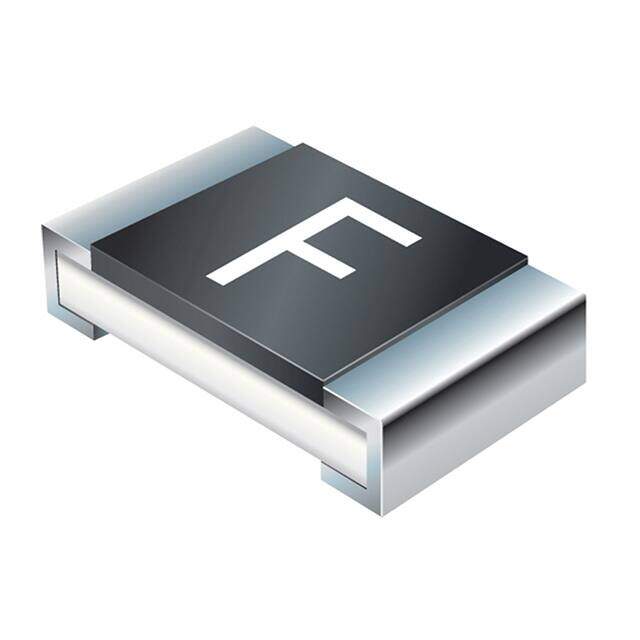

SF-0402FP050-2
RoHS
RoHS compliant
RoHS compliantPackage 0402 (1005 Metric)
Category Circuit Protection / Fuses
Description
FUSE BOARD MNT 500MA 32VDC 0402
PDF
/
Buying Options
Total Price: USD $0.77
Unit Price: USD $0.7656
≥1 USD $0.7656
≥10 USD $0.74448
≥100 USD $0.69608
≥500 USD $0.575872
≥1000 USD $0.479952
≥3000 USD $0.467949
Inventory: 8709
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Technical
Operating Temperature -20°C~150°C
Packaging Tape & Reel (TR)
Series SinglFuse? SF-0402FP
Size / Dimension 0.039Lx0.020W x 0.014 H 1.00mmx0.52mmx0.35mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Resistance 0.38Ohm
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Additional Feature PRE ARCING TIME: OPEN WITHIN 5 SEC AT 200% RATED CURRENT
Voltage - Rated DC 32V
Current Rating (Amps) 500mA
Packing Method TR, PAPER, 7 INCH
Base Part Number SF-0402
Reference Standard UL
Voltage - Rated AC 32V
Approval Agency UL
Body Length or Diameter 1mm
Body Breadth 0.52 mm
Response Time Fast Blow
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 35A
Rated Current 0.5A
Melting I2t 0.00317
Circuit Protection Type ELECTRIC FUSE
Trip Time or Delay 5 s
Dimensions
Body Height 0.35mm
Compliance
RoHS Status ROHS3 Compliant
