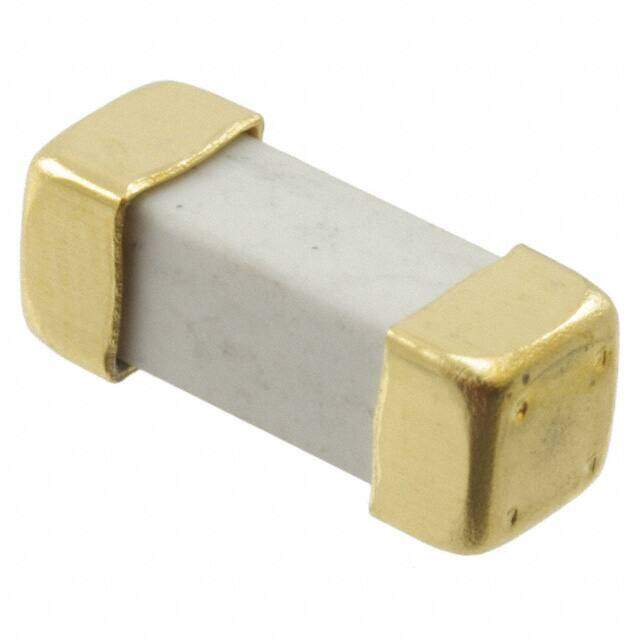

UMTS 800
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, Square End Block
Category Circuit Protection / Fuses
Description
FUSE BOARD MNT 800MA 250VAC 2SMD
PDF
/
Buying Options
Total Price: USD $0.32
Unit Price: USD $0.323145
≥1 USD $0.323145
Inventory: 1097
Minimum: 1
-
+
Technical Details
Technical
Blow Characteristic TIME LAG
Circuit Protection Type Electric Fuse
DC Cold Resistance 0.132Ohm
Melting I2t 2.8
Rated Current 0.8A
Breaking Capacity @ Rated Voltage 150A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Slow Blow
Physical Dimension 12.1mm x 4.45mm x 4.45mm
Body Breadth 4.45 mm
Body Length or Diameter 12.1mm
Approval Agency CE, cULus, UMF
Voltage - Rated AC 250V
Reference Standard UL
Packing Method TAPE AND REEL
Current Rating (Amps) 800mA
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Size / Dimension 0.476Lx0.175W x 0.175 H 12.10mmx4.45mmx4.45mm
Series UMTS
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Dimensions
Body Height 4.45mm
Compliance
RoHS Status ROHS3 Compliant
Physical
Package / Case 2-SMD, Square End Block
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
