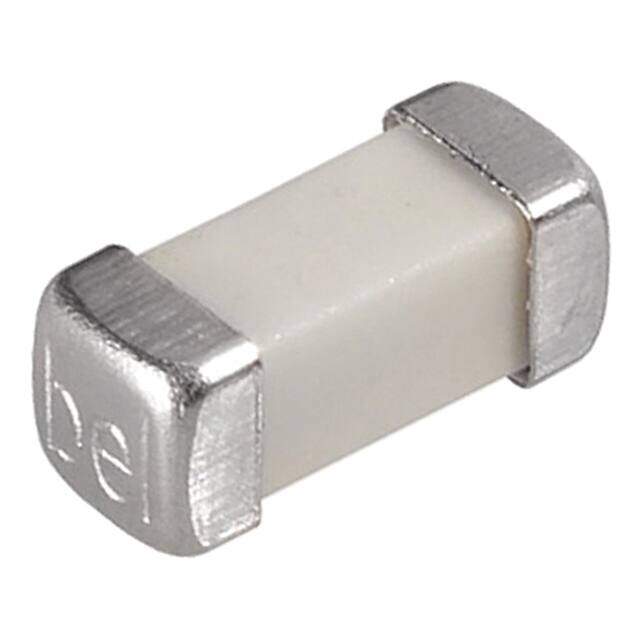

SSQ 1
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, Square End Block
Category Circuit Protection / Fuses
Description
FUSE BRD MNT 1A 125VAC/VDC 2SMD
PDF
/
Inventory: 2809
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 2-SMD, Square End Block
Surface Mount YES
Terminal Shape END CAP
Technical
Operating Temperature -55°C~125°C
Packaging Cut Tape (CT)
Series SSQ
Size / Dimension 0.240Lx0.100W x 0.100 H 6.10mmx2.54mmx2.54mm
JESD-609 Code e4
Pbfree Code yes
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Terminal Finish Nickel/Palladium (Ni/Pd)
Additional Feature RATED BREAKING CAPACITY: 10000 A
HTS Code 8536.10.00.40
Current Rating (Amps) 1A
Packing Method TAPE AND REEL
Reference Standard CE; UL
Voltage - Rated AC 125V
Approval Agency CE, CSA, cULus
Body Length or Diameter 6.1mm
Body Breadth 2.54 mm
Physical Dimension 6.1mm x 2.54mm x 2.54mm
Response Time Fast Blow
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 50A AC 300A DC
Rated Current 15A
Melting I2t 0.19
DC Cold Resistance 0.081Ohm
Circuit Protection Type ELECTRIC FUSE
Blow Characteristic VERY FAST
Joule Integral-Nom 121 J
Rated Voltage(DC) 86V
Dimensions
Body Height 2.54mm
Compliance
RoHS Status ROHS3 Compliant
