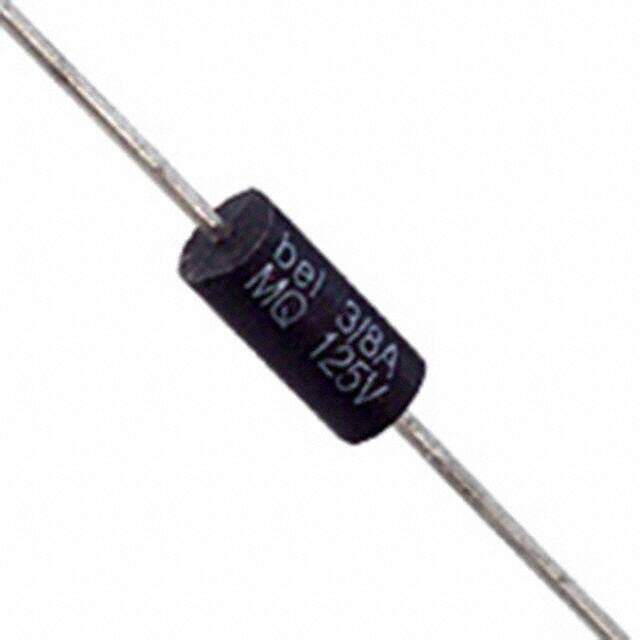

MQ 2.5
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Circuit Protection / Fuses
Description
FUSE BRD MNT 2.5A 125VAC/VDC AXL
PDF
/
Inventory: 9859
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Body Height 7.1mm
Technical
Pre-arcing Rating 0.005 A2/s
Rated Voltage(DC) 125V
Trip Time or Delay 14400 s
Fuse Size MICRO
Blow Characteristic VERY FAST
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.038Ohm
Melting I2t 0.59
Rated Current 0.25A
Breaking Capacity @ Rated Voltage 50A AC 300A DC
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Fast Blow
Physical Dimension 3.18mm x 7.1mm
Body Length or Diameter 3.18mm
Approval Agency CE, CSA, cURus
Voltage - Rated AC 125V
Reference Standard CE; CSA; UL
Reach Compliance Code compliant
Current Rating (Amps) 2.5A
HTS Code 8536.10.00.40
Additional Feature PRE-ARCING TIME: OPEN WITHIN 5 SEC AT 200% RATED CURRENT; RATED BREAKING CAPACITY AT 125 VDC: 300 A
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.125Diax0.280L 3.18mmx7.10mm
Series MQ
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Terminal Shape PIN WIRE
Surface Mount NO
Package / Case Axial
Mounting Type Through Hole
