GSA 5
RoHS
/
Package 3AB, 3AG, 1/4 x 1-1/4
Category Circuit Protection / Fuses
Description

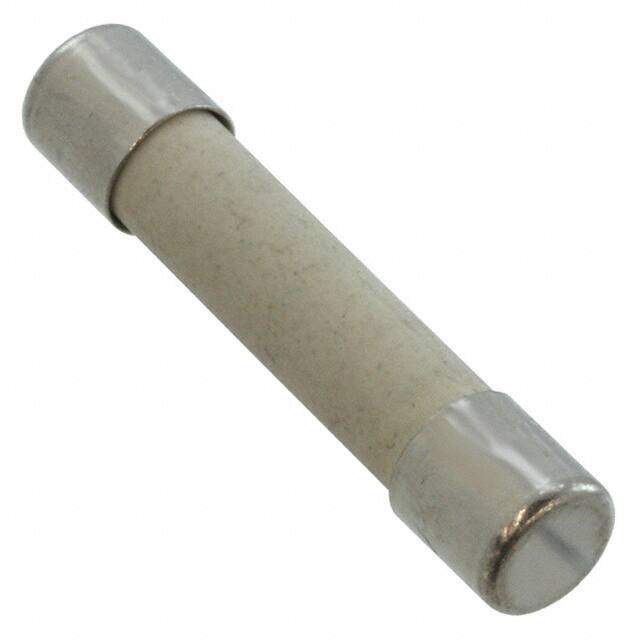

FUSE CERAMIC 5A 250VAC 3AB 3AG
PDF
/
Inventory: 7732
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Holder
Package / Case 3AB, 3AG, 1/4 x 1-1/4
Surface Mount NO
Terminal Shape END CAP
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series GSA
Size / Dimension 0.250Diax1.252L 6.35mmx31.80mm
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Current Rating (Amps) 5A
Reference Standard CE; CSA; PSE; UL
Voltage - Rated AC 250V
Approval Agency CE, CSA, PSE, UL
Body Length or Diameter 6.35mm
Physical Dimension 6.35mm x 31.8mm
Response Time Slow Blow
Fuse Type Cartridge, Ceramic
Breaking Capacity @ Rated Voltage 200A
Rated Current 5A
Melting I2t 349
DC Cold Resistance 0.03Ohm
Circuit Protection Type ELECTRIC FUSE
Fuse Size 6x32mm
Joule Integral-Nom 349 J
Dimensions
Body Height 31.8mm
Compliance
RoHS Status Non-RoHS Compliant
