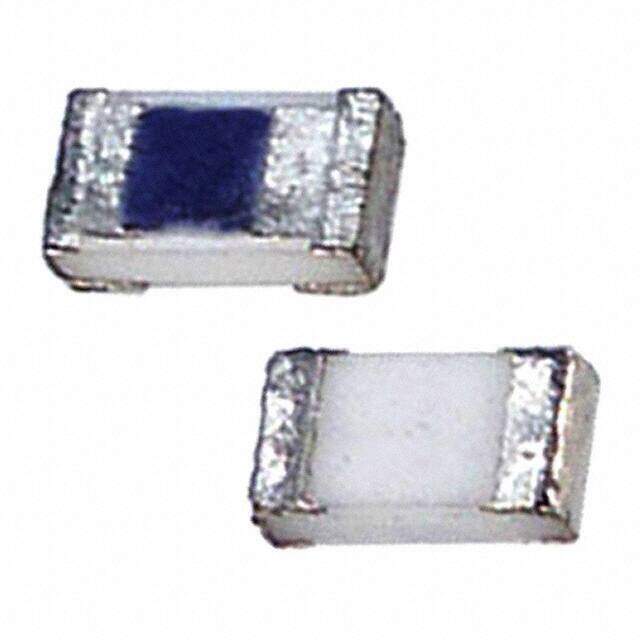

C2Q 3
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Circuit Protection / Fuses
Description
FUSE BRD MNT 3A 32VAC 63VDC 0603
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.2816
≥1 USD $0.2816
≥10 USD $0.27632
≥100 USD $0.264
≥500 USD $0.23584
≥1000 USD $0.21956
≥3000 USD $0.195184
Inventory: 139167
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Technical
Operating Temperature -55°C~125°C
Packaging Cut Tape (CT)
Series C2Q
Size / Dimension 0.063Lx0.032W x 0.019 H 1.60mmx0.82mmx0.48mm
JESD-609 Code e3
Pbfree Code yes
Part Status Active
ECCN Code EAR99
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Additional Feature RATED BREAKING CAPACITY AT 63 VDC: 50 A
HTS Code 8536.10.00.40
Voltage - Rated DC 63V
Current Rating (Amps) 3A
Packing Method TAPE AND REEL
Reference Standard CE; UL
Voltage - Rated AC 32V
Approval Agency CE, cURus
Body Length or Diameter 1.6mm
Body Breadth 0.82 mm
Physical Dimension 1.6mm x 0.82mm x 0.48mm
Response Time Fast Blow
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 35A AC 50A DC
Rated Current 0.3A
Melting I2t 0.36
DC Cold Resistance 0.034Ohm
Circuit Protection Type ELECTRIC FUSE
Blow Characteristic VERY FAST
Dimensions
Body Height 0.48mm
Compliance
RoHS Status ROHS3 Compliant
