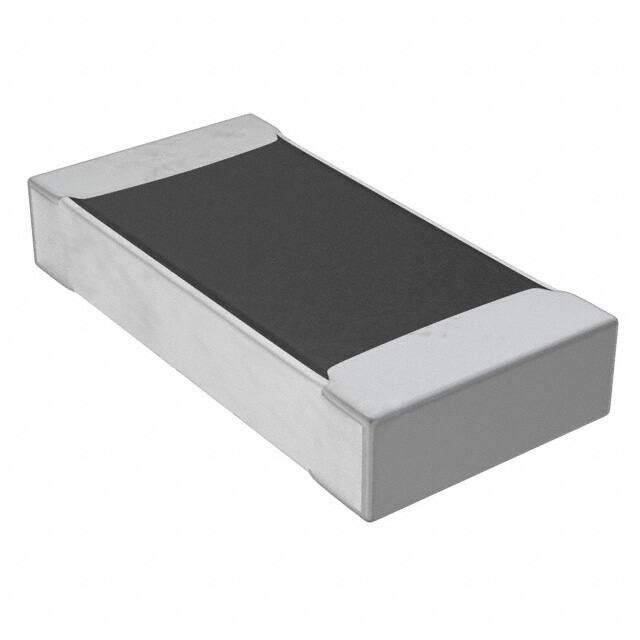

C1S 5
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Circuit Protection / Fuses
Description
FUSE BOARD MNT 5A 63VAC/VDC 1206
PDF
/
Inventory: 1178
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series C1S
Size / Dimension 0.126Lx0.062W x 0.023 H 3.20mmx1.58mmx0.58mm
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Additional Feature PRE-ARCING TIME: OPEN WITHIN 0.002 SEC. AT 800% RATED CURRENT
HTS Code 8536.10.00.40
Current Rating (Amps) 5A
Packing Method TAPE AND REEL
Reference Standard CE; UL
Voltage - Rated AC 63V
Approval Agency CE, cURus
Body Length or Diameter 3.2mm
Body Breadth 1.58 mm
Physical Dimension 3.2mm x 1.58mm x 0.58mm
Response Time Slow Blow
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 50A
Rated Current 5A
Melting I2t 3.1
DC Cold Resistance 0.022Ohm
Circuit Protection Type ELECTRIC FUSE
Joule Integral-Nom 3 J
Trip Time or Delay 14400 s
Rated Voltage(DC) 63V
Dimensions
Body Height 0.58mm
Compliance
RoHS Status ROHS3 Compliant
