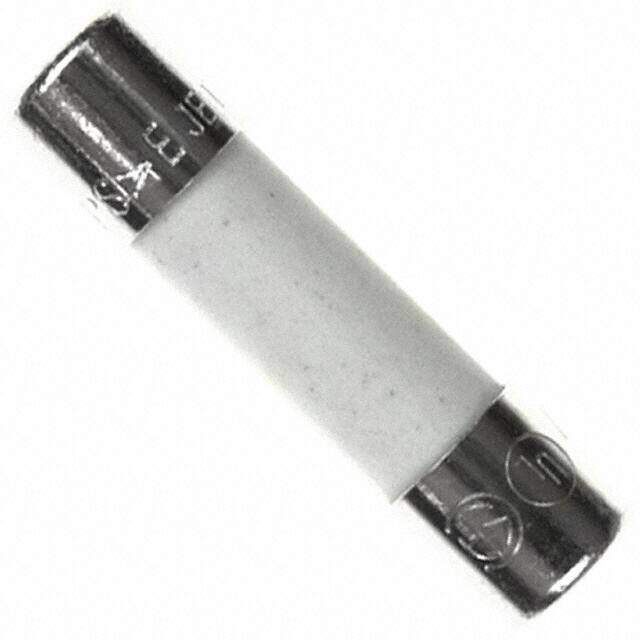

5TT 6
RoHS
/
Package 5mm x 20mm
Category Circuit Protection / Fuses
Description
FUSE CERAMIC 6A 125VAC 5X20MM
PDF
/
Inventory: 3790
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Body Height 20mm
Technical
Joule Integral-Nom 218 J
Fuse Size 5x20mm
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.015Ohm
Melting I2t 218
Rated Current 6A
Breaking Capacity @ Rated Voltage 10kA
Fuse Type Cartridge, Ceramic
Response Time Slow Blow
Physical Dimension 5.1mm x 20mm
Body Length or Diameter 5.1mm
Approval Agency CE, CSA, PSE
Voltage - Rated AC 125V
Reference Standard CE; CSA; PSE
Current Rating (Amps) 6A
Additional Feature PRE-ARCING TIME: OPEN WITHIN 3 SEC. AT 200% RATED CURRENT
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.201Diax0.787L 5.10mmx20.00mm
Series 5TT
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Terminal Shape END CAP
Surface Mount NO
Package / Case 5mm x 20mm
Mounting Type Holder
