5SF 1.6
RoHS
/
Package 5mm x 20mm
Category Circuit Protection / Fuses
Description

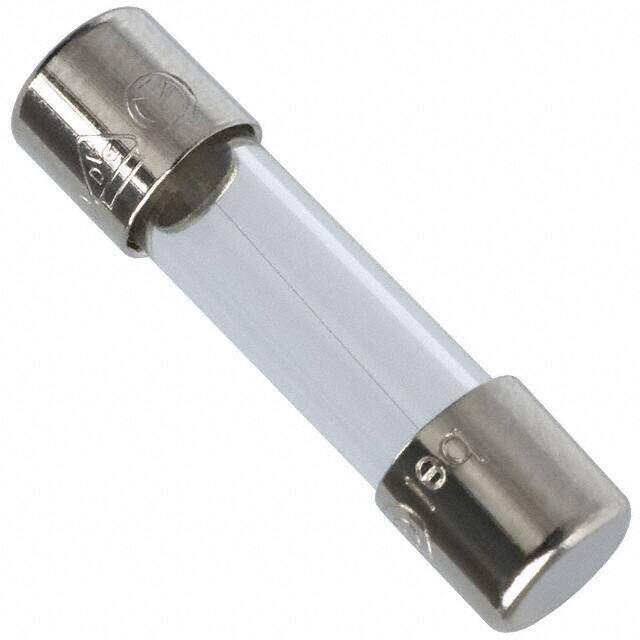

FUSE GLASS 1.6A 250VAC 5X20MM
PDF
/
Inventory: 3858
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Breaking Capacity @ Rated Voltage 35A
Rated Current 1.6A
Melting I2t 4
DC Cold Resistance 0.06Ohm
Circuit Protection Type ELECTRIC FUSE
Fuse Size 5x20mm
Joule Integral-Nom 4 J
Fuse Type Cartridge, Glass
Response Time Fast Blow
Physical Dimension 5.1mm x 20mm
Body Length or Diameter 5.1mm
Approval Agency CE, CSA, IMQ, SEMKO, UL, VDE
Voltage - Rated AC 250V
Reference Standard CCC; CE; CSA; SEMKO; UL; VDE
Current Rating (Amps) 1.6A
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.201Diax0.787L 5.10mmx20.00mm
Series 5SF
Packaging Bulk
Operating Temperature -55°C~125°C
Dimensions
Body Height 20mm
Compliance
RoHS Status Non-RoHS Compliant
Physical
Terminal Shape END CAP
Surface Mount NO
Package / Case 5mm x 20mm
Mounting Type Holder
