5MT 4
RoHS
/
Package 5mm x 20mm
Category Circuit Protection / Fuses
Description

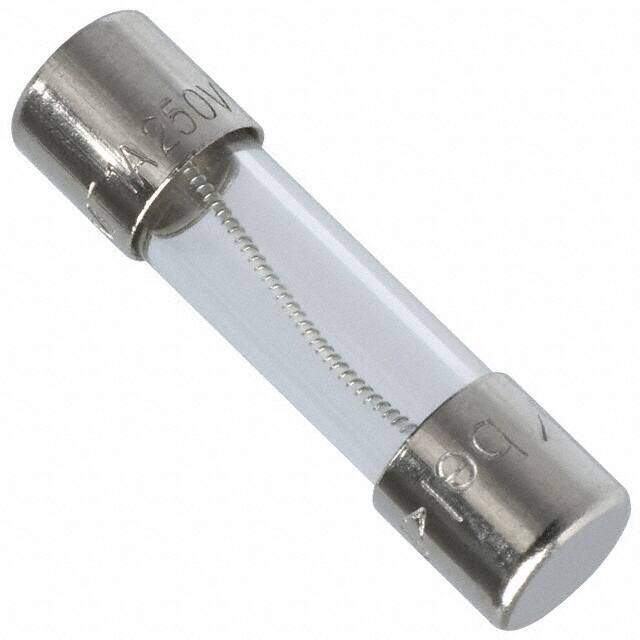

FUSE GLASS 4A 125VAC 5X20MM
PDF
/
Inventory: 5337
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
DC Cold Resistance 0.022Ohm
Melting I2t 99
Breaking Capacity @ Rated Voltage 10kA
Fuse Type Cartridge, Glass
Response Time Medium Blow
Approval Agency CE, CSA, PSE
Voltage - Rated AC 125V
Reach Compliance Code unknown
Current Rating (Amps) 4A
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Size / Dimension 0.201Diax0.787L 5.10mmx20.00mm
Series 5MT
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Package / Case 5mm x 20mm
Mounting Type Holder
Alternative Model
