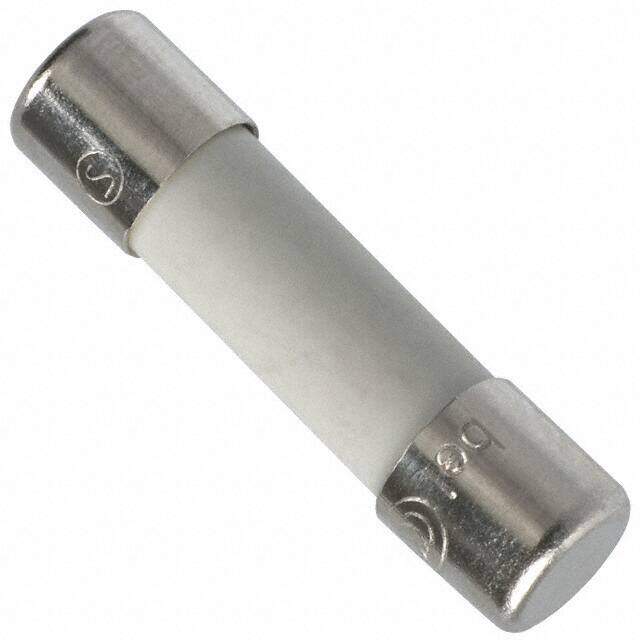

5HF 100
RoHS
/
Package 5mm x 20mm
Category Circuit Protection / Fuses
Description
FUSE CERAMIC 100MA 250VAC 5X20MM
PDF
/
Inventory: 2045
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Holder
Package / Case 5mm x 20mm
Surface Mount NO
Terminal Shape END CAP
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series 5HF
Size / Dimension 0.201Diax0.787L 5.10mmx20.00mm
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Current Rating (Amps) 100mA
Reference Standard CCC; CE; CSA; UL
Voltage - Rated AC 250V
Approval Agency CCC, CE, CSA, UL
Body Length or Diameter 5.1mm
Physical Dimension 5.1mm x 20mm
Response Time Fast Blow
Fuse Type Cartridge, Ceramic
Breaking Capacity @ Rated Voltage 1.5kA
Rated Current 0.1A
Melting I2t 0.003
DC Cold Resistance 3.85Ohm
Circuit Protection Type ELECTRIC FUSE
Blow Characteristic VERY FAST
Fuse Size 5x20mm
Dimensions
Body Height 20mm
Compliance
RoHS Status Non-RoHS Compliant
