3SB 15-R
RoHS
RoHS compliant
RoHS compliantPackage 3AB, 3AG, 1/4 x 1-1/4
Category Circuit Protection / Fuses
Description

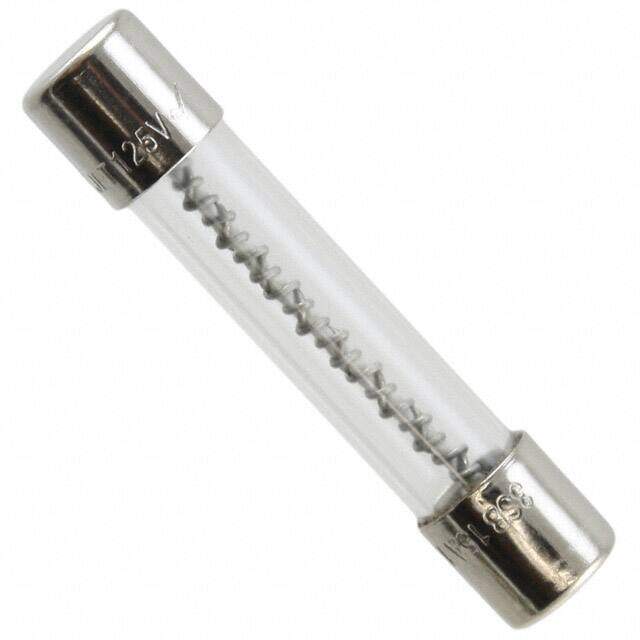

FUSE GLASS 15A 125VAC 3AB 3AG
PDF
/
Buying Options
Total Price: USD $0.86
Unit Price: USD $0.8624
≥1 USD $0.8624
≥10 USD $0.77968
≥100 USD $0.537944
≥500 USD $0.389981
≥1000 USD $0.349633
≥3000 USD $0.336186
Inventory: 1244
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Holder
Package / Case 3AB, 3AG, 1/4 x 1-1/4
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series 3SB
Size / Dimension 0.250Diax1.252L 6.35mmx31.80mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 15A
Voltage - Rated AC 125V
Approval Agency CE, CSA, cULus, PSE
Response Time Slow Blow
Fuse Type Cartridge, Glass
Breaking Capacity @ Rated Voltage 10kA
Melting I2t 2123
DC Cold Resistance 0.006Ohms
Compliance
RoHS Status ROHS3 Compliant
