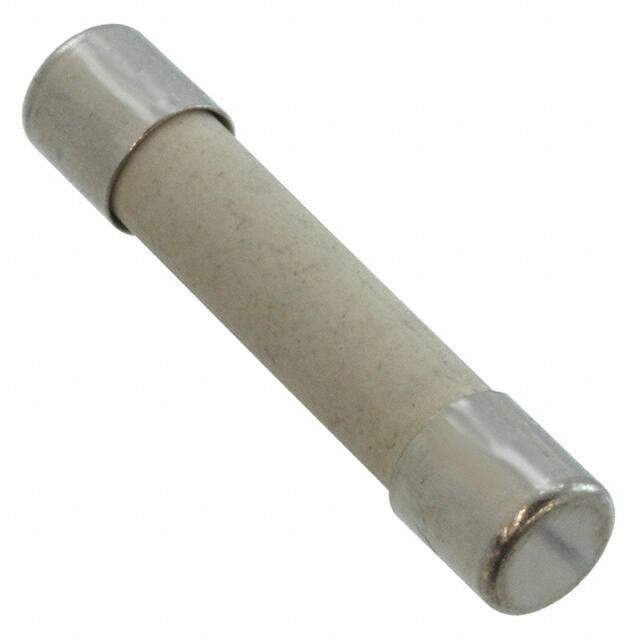

3AB 3
RoHS
/
Package 3AB, 3AG, 1/4 x 1-1/4
Category Circuit Protection / Fuses
Description
FUSE CERAMIC 3A 250VAC 3AB 3AG
PDF
/
Inventory: 948
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Body Height 31.8mm
Technical
Joule Integral-Nom 28 J
Fuse Size 6x32mm
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.035Ohm
Melting I2t 21
Rated Current 3.5A
Breaking Capacity @ Rated Voltage 100A
Fuse Type Cartridge, Ceramic
Response Time Fast Blow
Physical Dimension 6.35mm x 31.8mm
Body Length or Diameter 6.35mm
Approval Agency CE, CSA, PSE, UL
Voltage - Rated AC 250V
Reference Standard CE; CSA; PSE; UL
Current Rating (Amps) 3A
Additional Feature PRE-ARCING TIME: OPEN WITHIN 5 SEC. AT 200% RATED CURRENT
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.250Diax1.252L 6.35mmx31.80mm
Series 3AB
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Terminal Shape END CAP
Surface Mount NO
Package / Case 3AB, 3AG, 1/4 x 1-1/4
Mounting Type Holder
