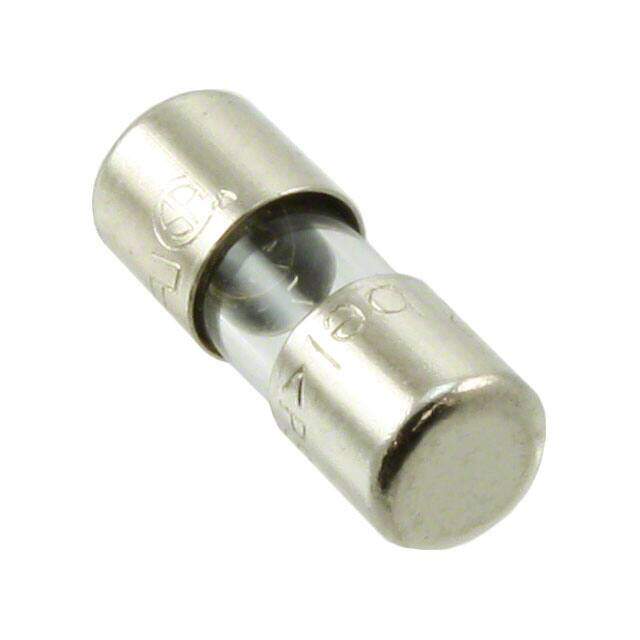

2JS 125-R
RoHS
RoHS compliant
RoHS compliantPackage 2AG, 5mm x 15mm
Category Circuit Protection / Fuses
Description
FUSE GLASS 125MA 350VAC 140VDC
PDF
/
Buying Options
Total Price: USD $0.64
Unit Price: USD $0.638801
≥1 USD $0.638801
≥10 USD $0.602652
≥100 USD $0.568534
≥500 USD $0.536351
≥1000 USD $0.50599
Inventory: 1101
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Body Height 13.8mm
Technical
Joule Integral-Nom 9 J
Fuse Size 5x15mm
Blow Characteristic TIME LAG
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 7.7Ohm
Melting I2t 0.107
Rated Current 1.25A
Breaking Capacity @ Rated Voltage 100A AC 150A DC
Fuse Type Cartridge, Glass
Response Time Slow Blow
Physical Dimension 5.1mm x 13.8mm
Body Length or Diameter 5.1mm
Approval Agency CSA, cURus
Voltage - Rated AC 350V
Reference Standard CE; CSA; PSE; UL
Current Rating (Amps) 125mA
Voltage - Rated DC 140V
Additional Feature PRE-ARCING TIME: OPEN WITHIN 30 MILLISEC. AT 1000% RATED CURRENT; RATED BREAKING CAPACITY AT 140 VDC: 150 A
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Last Time Buy
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.201Diax0.543L 5.10mmx13.80mm
Series 2JS
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Terminal Shape END CAP
Surface Mount NO
Package / Case 2AG, 5mm x 15mm
Mounting Type Holder
