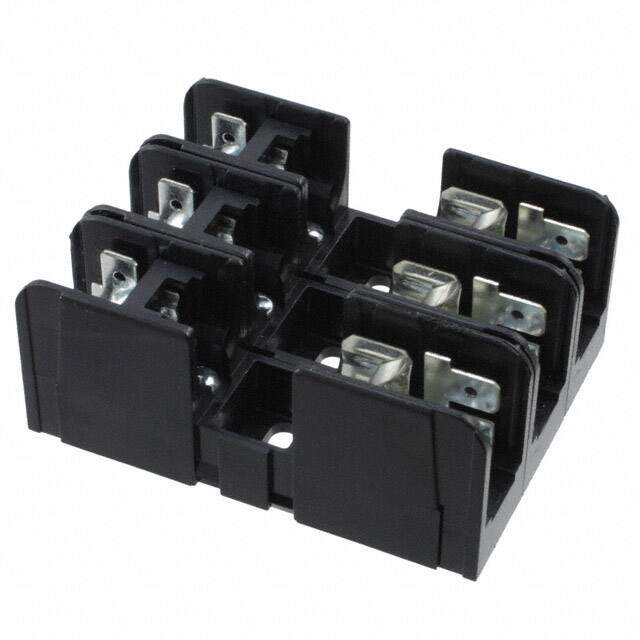

L60030C3PQ
RoHS
RoHS compliant
RoHS compliantPackage /
Category Circuit Protection / Fuseholders
Description
FUSE BLOCK CART 600V 30A CHASSIS
PDF
/
Buying Options
Total Price: USD $22.66
Unit Price: USD $22.660392
≥1 USD $22.660392
≥10 USD $21.37772
≥100 USD $20.167665
≥500 USD $19.026101
≥1000 USD $17.94916
Inventory: 1115
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 57.15mm
Technical
Fuse Current 30A
Fuseholder Type Block
Fuse Size 13/32Dia x 1-1/2L 10.3mmx38.1mm
Illumination Type Illuminated
Fuse Type Cartridge
Number of Poles 3
Number of Circuits 3
Voltage 600V
Voltage - Rated AC 600V
Termination Style Screw Terminal, Pressure Plate, Quick Connect
Contact Finish Tin
Current Rating 30A
Depth 76.2mm
Current Rating (Amps) 30A
Voltage - Rated DC 600V
Voltage - Rated 600V
Color Black
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series L600
Published 2006
Physical
Material Tin
Mounting Type Chassis Mount
Mount Chassis Mount
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 14 Weeks
