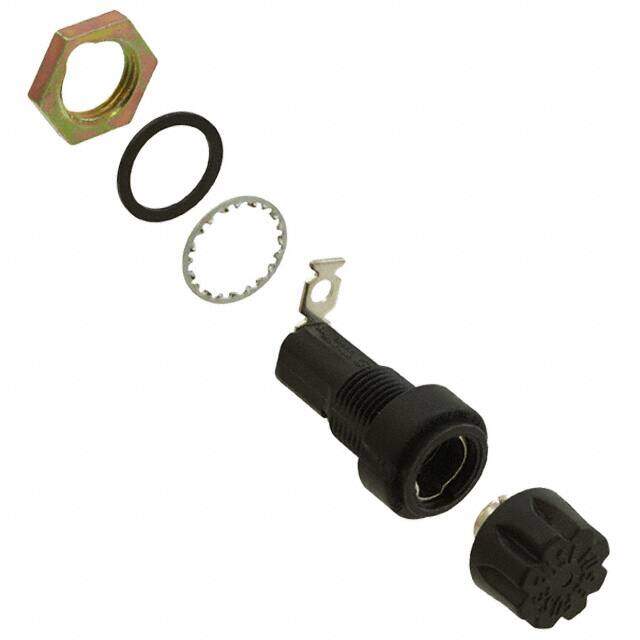

03420004HXPL image
Favorite
03420004HXPL image
Favorite

03420004HXPL

Littelfuse Inc.
RoHS
RoHS RoHS compliant
Package /
Category Circuit Protection / Fuseholders
Description FUSE HLDR CART 250V 20A PNL MNT
PDF
/
Buying Options
Total Price: USD $3.11
Unit Price: USD $3.1064
≥1 USD $3.1064
≥10 USD $3.00256
≥100 USD $2.89608
≥500 USD $2.252448
≥1000 USD $1.888392
Inventory: 281
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Contact Material Brass
Contact Plating Tin
Mount Panel
Mounting Type Panel Mount
Material Thermoplastic

Technical

Packaging Bulk
Published 2005
Series 342
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Black
Voltage - Rated 250V
Voltage - Rated DC 250V
Current Rating (Amps) 20A
Current Rating 20A
Contact Finish Tin
Termination Style Solder Lug
Voltage - Rated AC 250V
Voltage 250V
Number of Circuits 1
Number of Poles 1
Fuse Type Cartridge
Illumination Type Illuminated
Fuse Size 1/4Dia x 1 1/4L 6.35mmx32mm
Fuseholder Type Holder
Fuse Current 20A

Dimensions

Diameter 17.5mm
Length 45.2mm

Compliance

REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
