09180377001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Flat Ribbon Cables
Description

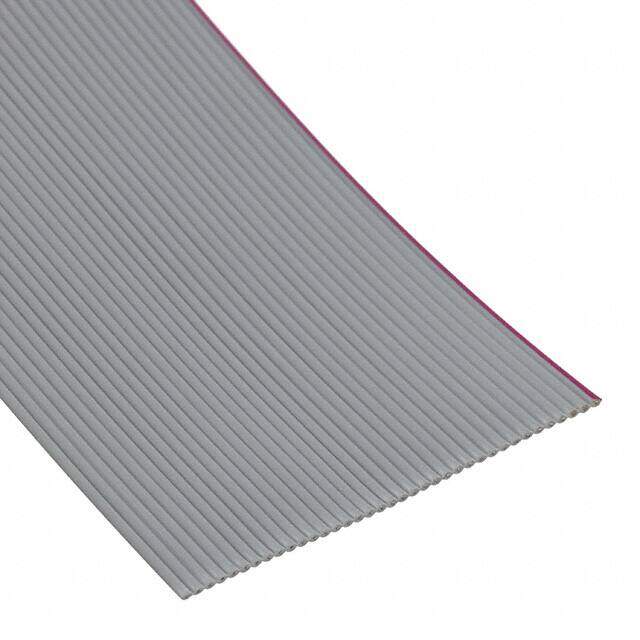

Flat Cables SEK CAB FLAT STD AWG28/7 37P 30,48M
PDF
/
Buying Options
Total Price: USD $405.28
Unit Price: USD $405.284
≥1 USD $405.284
≥10 USD $322.27712
≥100 USD $292.9784
≥500 USD $257.170144
Inventory: 91
Minimum: 1
-
+
Technical Details
Compliance
Ratings UL Style 2651
RoHS Status ROHS3 Compliant
Dimensions
Ribbon Thickness 0.037 0.93mm
Width 46.65mm
Length 100.0' 30.48m
Technical
First Conductor Mark Red
Number of Strands 7
Ribbon Width 1.837 46.65mm
Conductor Strand 7 Strands / 28 AWG
Jacket Color Gray
Wire/Cable Gauge 28 AWG
Cable Length 30.48m
Wire/Cable Type Flat
Cable Type Flat Cable
Max Current Rating 1.3A
Max Voltage Rating (AC) 300V
Insulation Resistance 100MOhm
Wire Gauge 28 AWG
Approval Agency UL
Number of Conductors 37
Current Rating 2.1A
Depth 46.99mm
Shielding Unshielded
Pitch 0.050 1.27mm
Capacitance 45.9pF
Voltage - Rated 300V
Color Grey
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Operating Temperature -20°C~105°C
Physical
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Insulation Material PVC
Mount Cable
Supply Chain
Factory Lead Time 11 Weeks
