09180207005
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Cables, Wires / Flat Ribbon Cables
Description

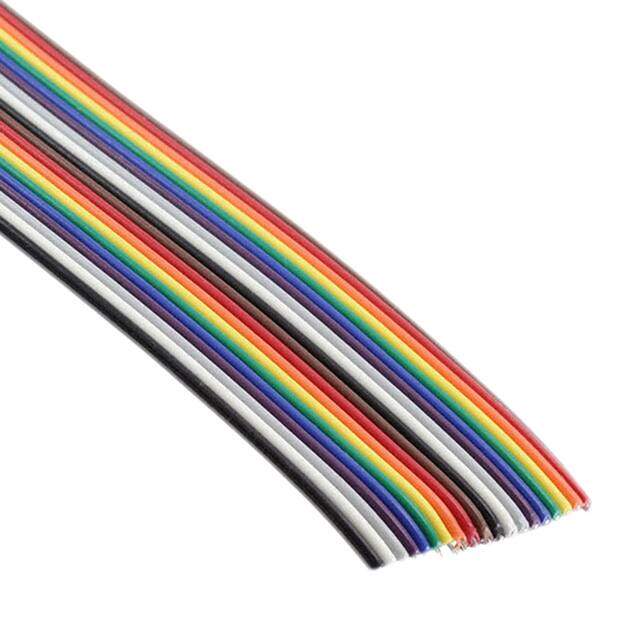

Flat Cables COLOUR COD FLAT CBL 20WIRE 100 FT/REEL
PDF
/
Buying Options
Total Price: USD $212.92
Unit Price: USD $212.9248
≥1 USD $212.9248
≥10 USD $169.20816
≥100 USD $153.82576
≥500 USD $135.204608
≥1000 USD $122.250832
Inventory: 18
Minimum: 1
-
+
Technical Details
Compliance
Ratings UL Style 2651
RoHS Status ROHS3 Compliant
Dimensions
Ribbon Thickness 0.037 0.93mm
Width 25.13mm
Length 100.0' 30.48m
Technical
First Conductor Mark Red
Number of Strands 7
Ribbon Width 0.989 25.13mm
Conductor Strand 7 Strands / 28 AWG
Jacket Color Multiple
Wire/Cable Gauge 28 AWG
Wire/Cable Type Flat
Cable Type Flat Cable
Insulation Resistance 100MOhm
Wire Gauge 28 AWG
Approval Agency UL
Number of Conductors 20
Current Rating 2.1A
Shielding Unshielded
Pitch 0.050 1.27mm
Capacitance 42.7pF
Voltage - Rated 300V
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Operating Temperature -20°C~105°C
Physical
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Insulation Material PVC
Package / Case 100
Mount Cable
Supply Chain
Factory Lead Time 6 Weeks
