09180167001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Flat Ribbon Cables
Description

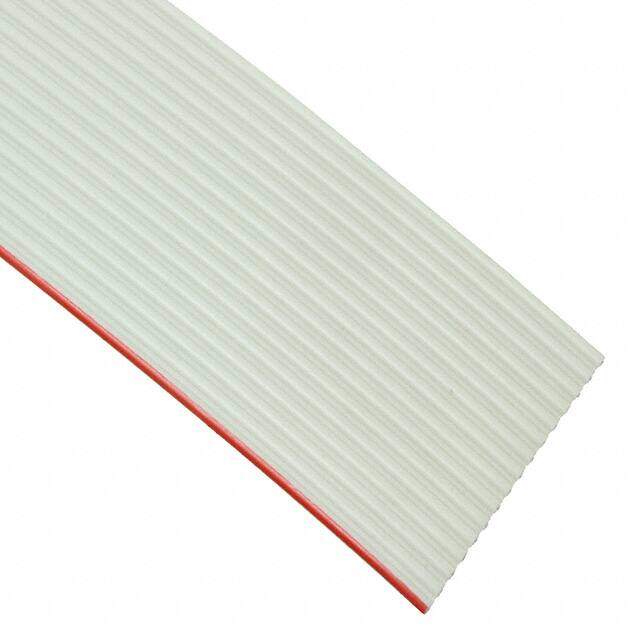

Flat Cables SEK CAB FLAT STD AWG28/7 16P 30,48M
PDF
/
Buying Options
Total Price: USD $122.34
Unit Price: USD $122.3376
≥1 USD $122.3376
≥10 USD $97.60432
≥100 USD $88.32912
≥500 USD $77.729344
≥1000 USD $70.221536
≥3000 USD $64.03848
Inventory: 44
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Technical
Operating Temperature -20°C~105°C
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Color Grey
Voltage - Rated 300V
Capacitance 45.9pF
Pitch 0.050 1.27mm
Shielding Unshielded
Depth 20.32mm
Current Rating 2.1A
Number of Conductors 16
Approval Agency UL
Wire Gauge 28 AWG
Insulation Resistance 100MOhm
Max Voltage Rating (AC) 300V
Max Current Rating 1.3A
Cable Type Flat Cable
Wire/Cable Type Flat
Cable Length 30.48m
Wire/Cable Gauge 28 AWG
Jacket Color Gray
Conductor Strand 7 Strands / 28 AWG
Ribbon Width 0.786 19.96mm
Number of Strands 7
First Conductor Mark Red
Dimensions
Length 100.0' 30.48m
Width 19.98mm
Ribbon Thickness 0.037 0.93mm
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style 2651
