09180157005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Flat Ribbon Cables
Description

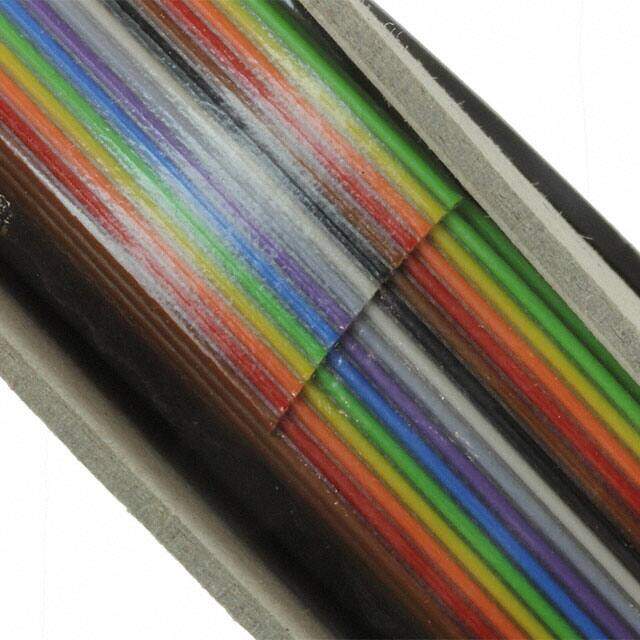

Flat Cables SEK CAB FLAT COLOR AWG28/7 15P 30,48M
PDF
/
Buying Options
Total Price: USD $194.6
Unit Price: USD $194.6032
≥1 USD $194.6032
≥10 USD $154.64416
≥100 USD $140.58616
≥500 USD $123.567488
≥1000 USD $111.728848
Inventory: 54
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Technical
Operating Temperature -20°C~105°C
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Voltage - Rated 300V
Capacitance 42.7pF
Pitch 0.050 1.27mm
Shielding Unshielded
Current Rating 2.1A
Number of Conductors 15
Approval Agency UL
Wire Gauge 28 AWG
Insulation Resistance 100MOhm
Cable Type Flat Cable
Wire/Cable Type Flat
Wire/Cable Gauge 28 AWG
Jacket Color Multiple
Conductor Strand 7 Strands / 28 AWG
Ribbon Width 0.739 18.78mm
Number of Strands 7
First Conductor Mark Red
Dimensions
Length 100.0' 30.48m
Width 18.78mm
Ribbon Thickness 0.037 0.93mm
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style 2651
