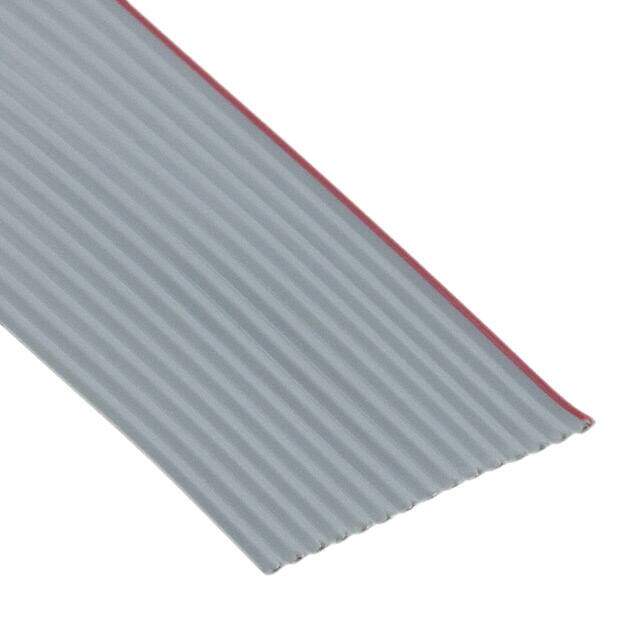

09180157001 image
Favorite
09180157001 image
Favorite

09180157001

HARTING
RoHS
RoHS RoHS compliant
Package 015
Category Cables, Wires / Flat Ribbon Cables
Description Flat Cables SEK CAB FLAT STD AWG28/7 15P 30,48M
PDF
/
Buying Options
Total Price: USD $97.69
Unit Price: USD $97.6888
≥1 USD $97.6888
≥10 USD $77.9416
≥100 USD $70.53552
≥500 USD $62.070976
≥1000 USD $56.075536
≥3000 USD $51.138032
Inventory: 78
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Mount Cable
Package / Case 015
Insulation Material PVC
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)

Technical

Operating Temperature -20°C~105°C
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Color Grey
Voltage - Rated 300V
Capacitance 45.9pF
Pitch 0.050 1.27mm
Shielding Unshielded
Depth 19.05mm
Current Rating 2.1A
Number of Conductors 15
Approval Agency UL
Wire Gauge 28 AWG
Insulation Resistance 100MOhm
Max Voltage Rating (AC) 300V
Max Current Rating 1.3A
Cable Type Flat Cable
Wire/Cable Type Flat
Cable Length 30.48m
Wire/Cable Gauge 28 AWG
Jacket Color Gray
Conductor Strand 7 Strands / 28 AWG
Ribbon Width 0.737 18.71mm
Number of Strands 7
First Conductor Mark Red

Dimensions

Length 100.0' 30.48m
Width 18.71mm
Ribbon Thickness 0.037 0.93mm

Compliance

RoHS Status ROHS3 Compliant
Ratings UL Style 2651
