302-28-16-GR-0100F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Flat Ribbon Cables
Description

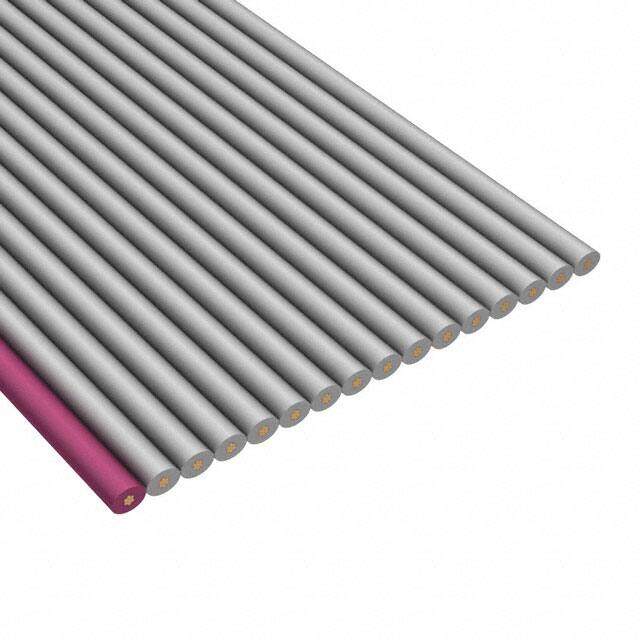

FLAT RBN CBL GRAY 16 COND 100'
PDF
/
Buying Options
Total Price: USD $0.53
Unit Price: USD $0.526592
≥1 USD $0.526592
≥10 USD $0.464402
≥100 USD $0.419954
≥500 USD $0.379966
≥1000 USD $0.335526
≥3000 USD $0.30441
Inventory: 1086
Minimum: 1
-
+
Technical Details
Compliance
Ratings UL Style 2651
RoHS Status ROHS3 Compliant
Dimensions
Ribbon Thickness 0.035 0.89mm
Length 100.0' 30.48m
Technical
First Conductor Mark Red
Ribbon Width 0.800 20.32mm
Conductor Strand 7 Strands / 0.0049
Jacket Color Gray
Wire/Cable Gauge 28 AWG
Wire/Cable Type Flat
Cable Type Flat Cable
Voltage 300V
Insulation Resistance 100MOhm
Wire Gauge 28 AWG
Number of Conductors 16
Shielding Unshielded
Pitch 0.050 1.27mm
Color Grey
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Operating Temperature 105°C
Physical
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Insulation Material PVC
Supply Chain
Factory Lead Time 18 Weeks
