191-2811-026
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Flat Ribbon Cables
Description

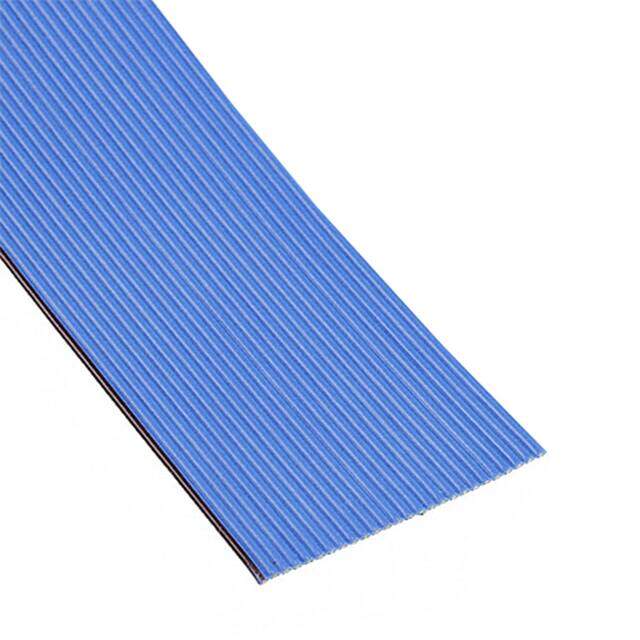

Flat Cables 28 AWG .050 Hi Flex Ribbon Zip 26 Cond
PDF
/
Inventory: 5255
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper Alloy, Silver Coated
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Technical
Operating Temperature 105°C
Published 2017
Series Spectra-Flex?
Part Status Discontinued
Moisture Sensitivity Level (MSL) Not Applicable
Color Blue
Voltage - Rated 300V
Voltage - Rated DC 300V
Current Rating (Amps) 1.3A
Pitch 0.050 1.27mm
Shielding Unshielded
Depth 33.02mm
Number of Conductors 26
Approval Agency CSA, UL
Wire Gauge 28 AWG
Insulation Resistance 10GOhm
Voltage 300V
Cable Type Flat Cable
Wire/Cable Type Flat
Cable Length 30.48m
Wire/Cable Gauge 28 AWG
Jacket Color Blue
Conductor Strand 19 Strands / 40 AWG
Cable Pitch 1.27mm
Ribbon Width 1.300 33.02mm
First Conductor Mark Red
Dimensions
Length 100.0' 30.48m
Ribbon Thickness 0.035 0.89mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Ratings UL Style 2651
