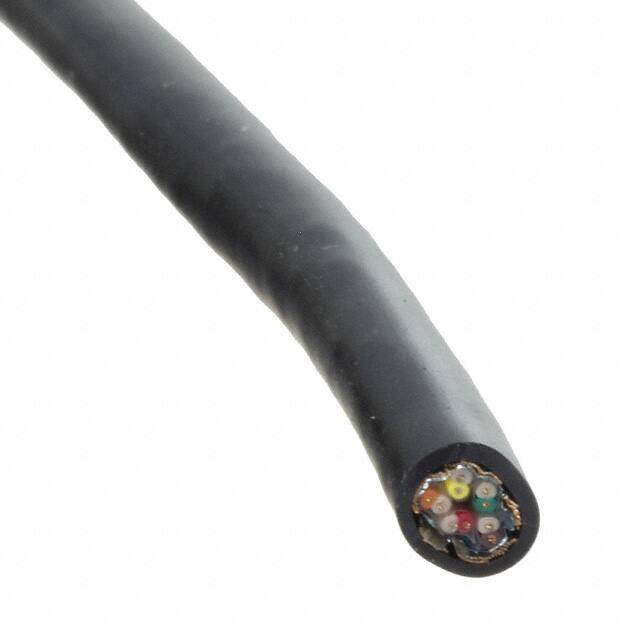

159-2832-010 image
Favorite
159-2832-010 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Cables, Wires / Flat Ribbon Cables
Description Flat Cables Twist N Flat 28 AWG Shielded 5 Cond .050
PDF
/
Inventory: 9163
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Ribbon Thickness 0.035 0.89mm
Width 76.2μm
Length 100.0' 30.48m

Technical

Ribbon Width 0.526 13.36mm
Stranding 7X36
Cable Pitch 1.27mm
Wire/Cable Diameter 7.62 mm
Conductor Strand 7 Strands / 36 AWG
Jacket Color Black
Wire/Cable Gauge 28 AWG
Wire/Cable Type Flat
Impedance 70Ohm
Cable Type Flat Twisted Pair, Round Jacket
Max Current Rating 1.3A
Insulation Resistance 10GOhm
Wire Gauge 28 AWG
Approval Agency CSA, UL
Number of Conductors 10 (5 Pair Twisted)
Current Rating 1.3A
Reach Compliance Code unknown
Construction STRANDED
Depth 13.36mm
Shielding Shielded
Pitch 0.050 1.27mm
Voltage - Rated DC 300V
Capacitance 25pF
Additional Feature DIAMETER OF INDIVIDUAL CONDUCTOR IS 0.89 MM
Voltage - Rated 300V
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Discontinued
Series Twist 'N' Flat?
Published 2015
Packaging Tape & Reel
Operating Temperature -40°C~105°C

Physical

Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Insulation Material Polyvinyl
Mount Cable
Contact Plating Tin

Supply Chain

Factory Lead Time 2 Weeks
