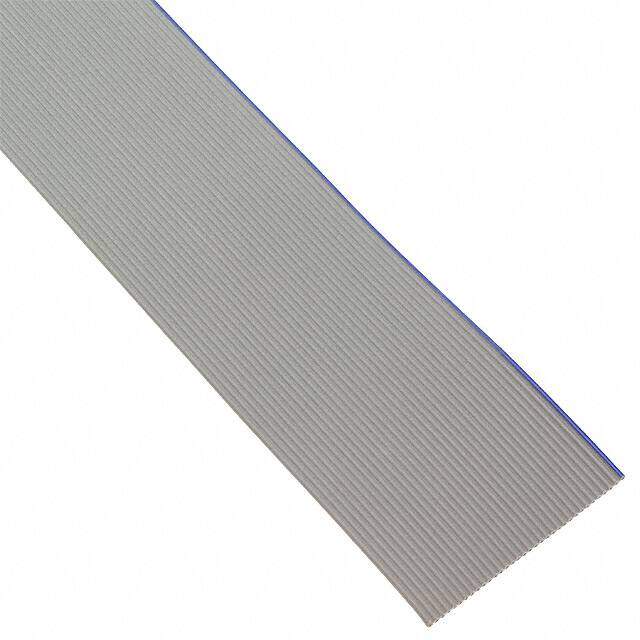

HF539/34
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Flat Ribbon Cables
Description
Flat Cables 34C, 28G,.050,100 MED FLEX, HAL FREE
PDF
/
Buying Options
Total Price: USD $8.67
Unit Price: USD $8.668
≥1 USD $8.668
Inventory: 17
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Insulation Material PO
Conductor Material Copper, Tinned
Jacket (Insulation) Material Polyolefin (PO)
Technical
Operating Temperature -40°C~105°C
Published 2013
Series HF539
Feature Zippable
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Grey
Voltage - Rated 300V
Current Rating (Amps) 1A
Pitch 0.050 1.27mm
Shielding Unshielded
Number of Conductors 34
Approval Agency UL
Wire Gauge 28 AWG
Insulation Resistance 10GOhm
Voltage 300V
Cable Type Flat Cable
Wire/Cable Type Flat
Wire/Cable Gauge 28 AWG
Jacket Color Gray
Conductor Strand 19 Strands / 40 AWG
Ribbon Width 1.700 43.18mm
First Conductor Mark Blue
Dimensions
Length 100.0' 30.48m
Ribbon Thickness 0.035 0.89mm
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style 21682
