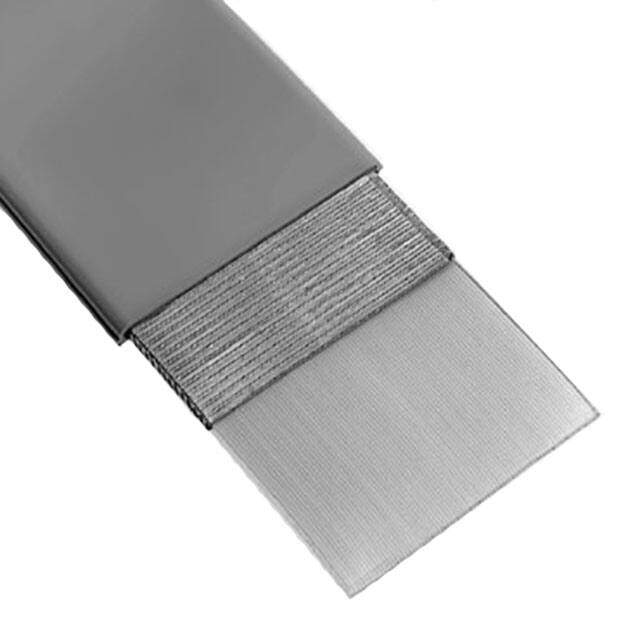

90202/36
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Cables, Wires / Flat Ribbon Cables
Description
Flat Cables UL/36/CAB/TPE/RC/ STR/30G/.025/100
PDF
/
Buying Options
Total Price: USD $13.59
Unit Price: USD $13.587202
≥1 USD $13.587202
Inventory: 9429
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Package / Case 100
Insulation Material TPE
Weight 3.628739kg
Conductor Material Copper, Tinned
Jacket (Insulation) Material Thermoplastic Elastomer (TPE)
Technical
Operating Temperature -20°C~105°C
Published 2003
Series 90202
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 105°C
Min Operating Temperature -20°C
Color Grey
Pitch 0.025 0.64mm
Shielding Shielded
Number of Conductors 36
Wire Gauge 30 AWG
Insulation Resistance 10GOhm
Voltage 150V
Cable Type Flat Cable, Flat Jacket
Wire/Cable Type Flat
Wire/Cable Gauge 30 AWG
Jacket Color Gray
Conductor Strand 7 Strands / 38 AWG
Ribbon Width 0.940 23.88mm
First Conductor Mark Blue
Dimensions
Length 100.0' 30.48m
Ribbon Thickness 0.060 1.52mm
Compliance
RoHS Status RoHS Compliant
Ratings UL E118773
