7700/10 100'SF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Flat Ribbon Cables
Description

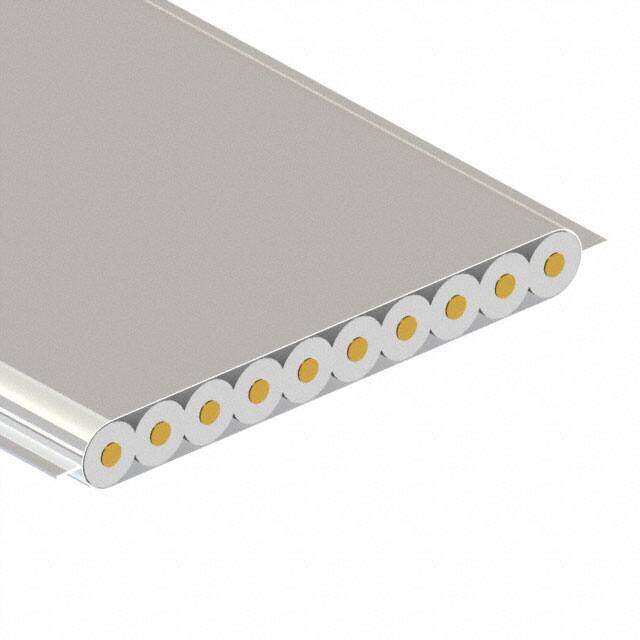

CBL RIBN 10COND .025 SILVER 100'
PDF
/
Buying Options
Total Price: USD $2.94
Unit Price: USD $2.9392
≥1 USD $2.9392
≥10 USD $2.4376
≥100 USD $2.24752
≥500 USD $2.022592
≥1000 USD $1.859264
≥3000 USD $1.716264
Inventory: 252
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Ribbon Thickness 0.030 0.76mm
Length 100.0' 30.48m
Technical
Ribbon Width 0.300 7.62mm
Conductor Strand Solid
Jacket Color Silver
Cable Type Flat Cable
Voltage 30V
Insulation Resistance 1GOhms
Wire Gauge 30 AWG
Number of Conductors 10
Shielding Unshielded
Pitch 0.025 0.64mm
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series 7700
Published 2017
Operating Temperature -20°C~80°C
Physical
Jacket (Insulation) Material Polyolefin (PO)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 9 Weeks
