3811/10SF
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Cables, Wires / Flat Ribbon Cables
Description

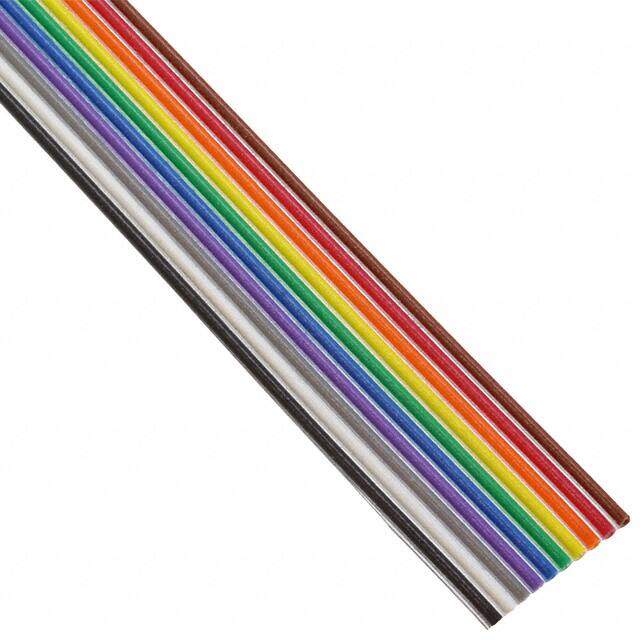

CBL RIBN 10COND 0.050 MULTI 100'
PDF
/
Buying Options
Total Price: USD $1.03
Unit Price: USD $1.025375
≥1 USD $1.025375
Inventory: 2147
Minimum: 1
-
+
Technical Details
Compliance
Ratings UL Style 20462
RoHS Status ROHS3 Compliant
Dimensions
Ribbon Thickness 0.042 1.07mm
Length 100.0' 30.48m
Technical
Ribbon Width 0.500 12.70mm
Conductor Strand 7 Strands / 34 AWG
Jacket Color Multiple
Wire/Cable Gauge 26 AWG
Wire/Cable Type Flat
Cable Type Flat Cable
Voltage 300V
Insulation Resistance 10GOhm
Wire Gauge 26 AWG
Number of Conductors 10
Shielding Unshielded
Pitch 0.050 1.27mm
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Zippable
Series 3811
Published 2009
Operating Temperature -20°C~105°C
Physical
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Insulation Material PVC
Package / Case 100
Supply Chain
Factory Lead Time 5 Weeks
