3609/26 100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Flat Ribbon Cables
Description

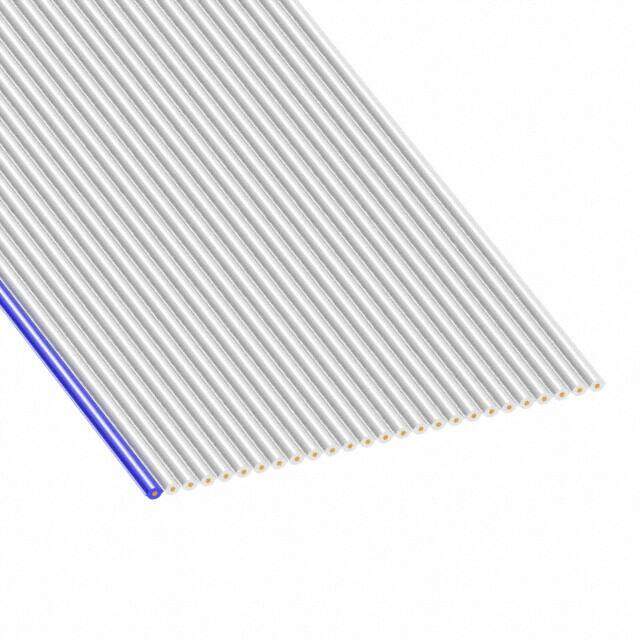

Flat Cable Fluorinated Ethylene Propylene 26Conductors 30AWG 150V Opaque White/Blue Edge 30.48m Roll
PDF
/
Buying Options
Total Price: USD $21.64
Unit Price: USD $21.6392
≥1 USD $21.6392
≥10 USD $17.2304
≥100 USD $15.64552
≥500 USD $13.715328
≥1000 USD $12.47488
≥3000 USD $11.303248
Inventory: 362
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Conductor Material Copper, Silver Coated
Jacket (Insulation) Material Fluorinated Ethylene-Propylene (FEP)
Technical
Operating Temperature -55°C~155°C
Published 2003
Series 3609
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Pitch 0.025 0.64mm
Shielding Unshielded
Number of Conductors 26
Wire Gauge 30 AWG
Insulation Resistance 10GOhm
Voltage 150V
Cable Type Flat Cable
Jacket Color White
Conductor Strand 7 Strands / 38 AWG
Ribbon Width 0.650 16.51mm
First Conductor Mark Blue
Dimensions
Length 100.0' 30.48m
Ribbon Thickness 0.024 0.61mm
Compliance
RoHS Status RoHS Compliant
Ratings UL Style 20726
